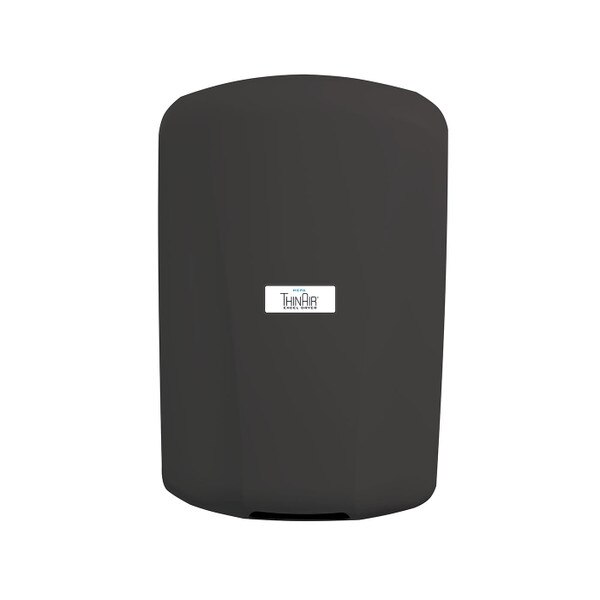

Excel ThinAir TA-SPVH-Black High Speed ADA Hand Dryer With HEPA Filter, Raven Black, 208-277V
 | Now available with HEPA filtration! 208-277V. |
The ThinAir® HEPA Hand Dryer is a high-efficiency model that is surface-mounted and ADA compliant. ThinAir dries hands in 15 seconds, uses 950 watts or less (as low as 300 watts) and has a slimmer profile to meet ADA compliance standards. The ThinAir HEPA Hand Dryer features adjustable speed and sound control, variable heat settings and electrostatic HEPA filter.
Electrostatic HEPA Filtration System: Removes 99.999% of viruses and 99.97% of potentially present bacteria at 0.3 microns from the airstream.
80% Less Energy Than Conventional Dryers (300-950 Watts)
95% Cost Savings vs Paper Towels
Made in USA Certified®
5-Year Limited Warranty
Meets 4" ADA protrusion guidelines to accomodate the visually impaired
Looking for parts? See our ThinAir Parts Area
Certifications:
Measurement Diagram:
| Activation: | Automatic (infra-red sensor) Touch-Free |
| Mount: | Wall Mount / Surface Mount |
| Cover: | Stainless Steel, Raven Black Epoxy Finish |
| Cycle Time: | Not applicable Dryer stops when hands are removed. |
| Nozzle: | Concentrated Single Port (with oval configuration to reduce noise) |
| Power: | 770-915 Watts (Adjustable), 110-120V (7 to 7.7A), 50/60Hz |
| Motor: | High pressure universal brush type. |
| Fan: | Circular impeller inside through-flow discharge vacuum type motor/blower casing (20-30,000 rpm) |
| Airspeed: | 16,000 LFM |
| Heating Element: | Heating element (550 W) is constructed of Nichrome wire and mounted inside the blower housing behind air baffle, thereby being vandal resistant |
| Filter: | Electrostatic HEPA Filtration System |
| IP Rating: | IPX3 (Water Ingress Level 3) |
| Product Dimensions: | 8-29/32" Wide x 13-11/16" Tall x 4" Deep |
| Shipping Dimensions: | 15" Long x 14" Wide x 10" High |
| Shipping Weight: | 10 lbs. |
| UPC / GTIN: | Not published |
| Manufacturer Model No.: | TA-SPVH-Black |
| Country of Manufacture: | USA |
| Warranty: | 5 Yr. Manufacturer's Limited |
