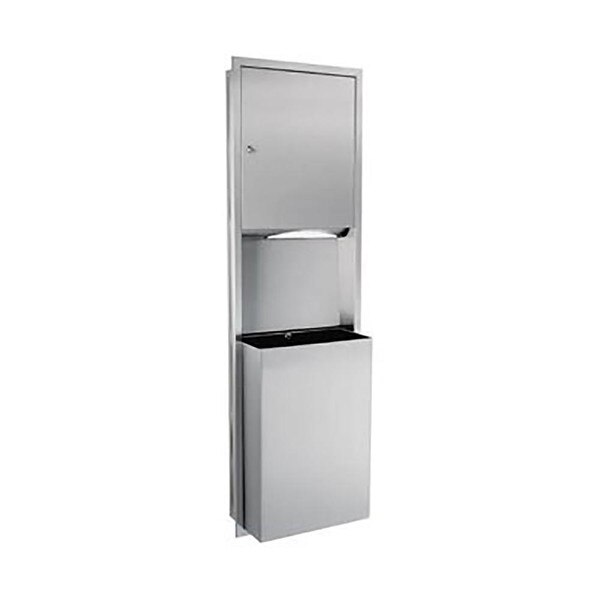

Gamco TW-1 Recessed Towel Dispenser and Waste Receptacle Combination, 12-gal.
Satin-finish stainless steel. Vandal-resistant 18-gauge door with tumbler lock. Dispenses 600 C-fold or 800 multifold towels. Removable waste receptacle secured to cabinet with tumbler lock. Receptacle has 12-gal. (45.4-L) capacity. Unit is 17 1/8″ W, 56″ H, 4 1/4″ D (435 x 1422 x 108mm). Rough Wall Opening: 15 3/4″ W, 54 3/4″ H, 4″ min D (400 x 1391 x 102mm).
Measurement Diagram:
| Type: | C-fold, Multifold (with Waste Bin) |
| Primary Material: | Stainless Steel |
| Color / Finish: | Satin (Brushed) |
| Installation Type: | Wall mount, Recessed Mount |
| Towel Capacity: | 600 C-fold or 800 Multifold |
| Waste Bin Capacity: | 12 Gallons |
| Power: | No power required |
| ADA Compliant: | Yes (Cane detectable) |
| Overall Dimensions: | 17-1/8" Wide x 56" Tall x 9-1/4" Deep (Projects 5") |
| Rough-In: | 15-3/4" Wide x 54-3/4" Tall x 4" Deep |
| Shipping Dimensions: | 59" Length x 20" Width x 11" Height |
| Shipping Weight: | 35 lbs. |
| Manufacturer Model No.: | TW-1 |
| UPC / GTIN: | 716954019899 |
| Country of Manufacture: | United States |
| Warranty: | 1 Yr. Manufacturer's Limited |
| Additional Comments: | Waste receptacle secured to unit with tumbler lock. Removeable for servicing. |
