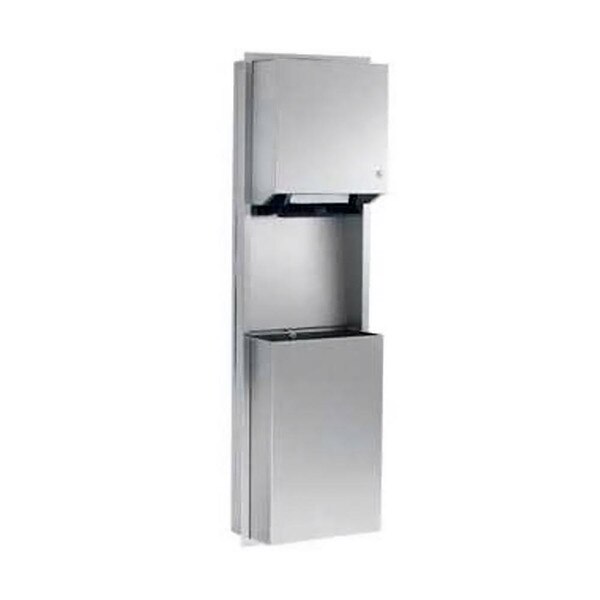

Gamco TW-14RP-T Automatic Touchless Roll Towel Dispenser and Waste Receptacle Textured, 12-gal.
4" (102mm) skirt for surface-mounting. Satin-finish type 304 stainless steel. Vandal-resistant 18-gauge door with tumbler lock. Towels are dispensed automatically when hands are placed below dispenser. Accepts paper rolls 7-3⁄4" (197mm) wide up to 8" (203mm) dia. 1-1/2" to 2" (38 to 51mm) core. Removable waste receptacle secured to cabinet with tumbler lock. Receptacle has 12-gal. (45.4-L) capacity. Unit 17 1/8" W, 56" H, 10" D (435 x 1472 x 254mm).
Measurement Diagram:
| Type: | Automatic, Roll Towel (with Waste Bin) |
| Primary Material: | Stainless Steel |
| Color / Finish: | Satin (Brushed) |
| Installation Type: | Wall mount, Recessed Mount |
| Towel Capacity: | Accepts universal roll paper. 7-3/4" to 8" (197 to 203mm) wide up to 8" (203mm) in diameter. 1-1/2" to 2" (38 to 51mm) core. Accepts stub roll. |
| Waste Bin Capacity: | 12 Gallons |
| Power: | Battery Operated (4 D-cell), Not included. |
| ADA Compliant: | Yes (Cane detectable) |
| Overall Dimensions: | 17-1/8" Wide x 56" Tall x 10" Deep (Projects 5-3/4") |
| Rough-In: | 15-3/4" Wide x 54-3/4" Tall x 4" Deep |
| Shipping Dimensions: | 60" Length x 12" Width x 12" Height |
| Shipping Weight: | 40 lbs. |
| Manufacturer Model No.: | TW-14RP-T |
| UPC / GTIN: | 716954019912 |
| Country of Manufacture: | United States |
| Warranty: | 1 Yr. Manufacturer's Limited |
| Additional Comments: | Waste receptacle secured to unit with tumbler lock. Removeable for servicing. |
