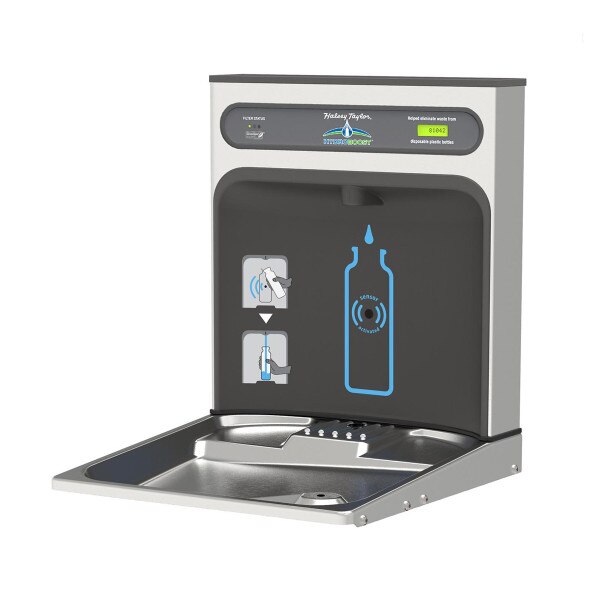

Halsey Taylor HTHB-HAC-RF HydroBoost Bottle Filler RetroFit Kit For HAC (Filtered)

Halsey Taylor retrofit kit for adding filtered HydroBoost Bottle Filling Station to existing HAC Water Coolers (110-120V).

Unit will deliver refrigerated water only if the existing unit is refrigerated. Unit ADDS filtering and so, is not intended for HAC water coolers that are already filtered (see note below).

Delivers a clean quick water bottle fill (1.1 GPM) and enhances sustainability by minimizing our dependency on disposable plastic bottles. Includes new basin and additional drain (for bottle filler portion). Features sanitary no-touch IR sensor activation with automatic 20-second shut-off timer.

Kit includes: bottle filling apparatus, upgraded basin, filter, and necessary tubing and connectors.

Note: If you have a filtered HAC series drinking fountain, this unit will provide a filter status light (but will come with extra parts that are not needed for installation).

• Touchless, sensor-activated bottle filler, designed for easy use; retrofits existing HAC 115V style coolers
• Fill rate is 1.5 GPM
• Visual filter monitor with LED filter status indicator for when filter change is necessary
• The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction
• Green Counter™ informs user of number of 20 oz. plastic water bottles saved from waste
• Laminar flow provides clean fill with minimal splash

This model comes with a Halsey Taylor 55898C filter which is good for 3000 gallons before it will need to be replaced.

It is also compatible with the Elkay 51300C filter which is also good for 3000 gallons before it will need to be replaced but can be bought in multi-packs for savings. And for a longer life filter, choose the Elkay 51600C water filter which lasts twice as long.

---

Certifications:



---

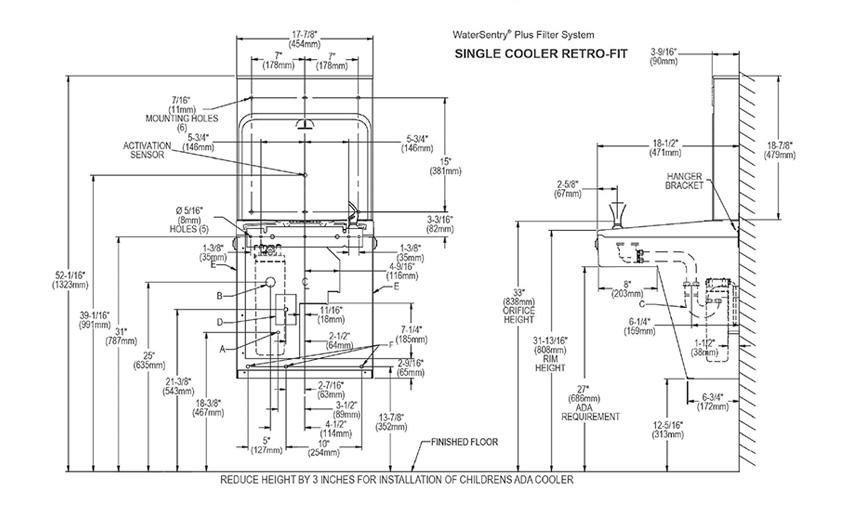

Measurement Diagram:

---
