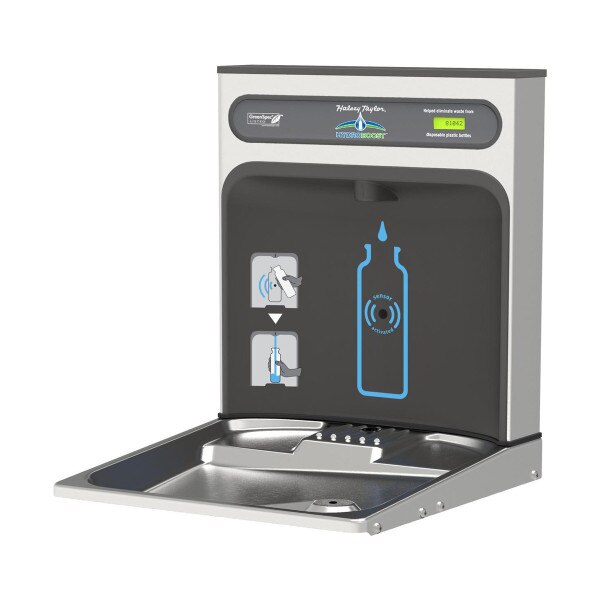

Halsey Taylor HTHB-HAC-RF-NF HydroBoost RetroFit Kit For HAC Models (Non-Filtered)
Halsey Taylor retrofit kit for adding filtered HydroBoost Bottle Filling Station to existing HAC Water Coolers (110-120V). Unit will deliver refrigerated water only if the existing unit is refrigerated. Unit intended for HAC water coolers that are either not filtered (or are filtered, but won't need a filter status light). Delivers a clean quick water bottle fill (1.1 GPM) and enhances sustainability by minimizing our dependency on disposable plastic bottles. Includes new basin and additional drain (for bottle filler portion). Features sanitary no-touch IR sensor activation with automatic 20-second shut-off timer. Kit includes: bottle filling apparatus, upgraded basin, filter, and necessary tubing and connectors. Does NOT include a filter or filtering system.
- Touchless, sensor-activated bottle filler, designed for easy use; retrofits existing HAC 115V style coolers
- Fill rate is 1.5 GPM
- Green Counter™ informs user of number of 20 oz. plastic water bottles saved from waste
- Laminar flow provides clean fill with minimal splash
- Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew
- Real drain system eliminates standing water
Certifications:

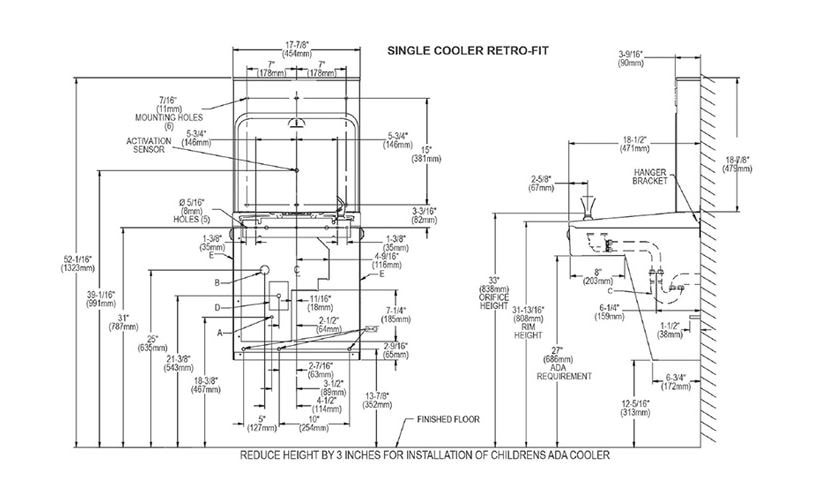

Measurement Diagram:
| Brand: | Elkay |
| Manufacturer Model No.: | HTHB-HAC-RF-NF |
| Type: | Retrofit Bottle Filler Kit |
| Compatibility: | Halsey Taylor models: HAC8BLSS-NF, HAC8EEBLPV-NF, HAC8EEBLSS-NF, HAC8EEPV-NF, HAC8EESS-NF, HAC8FS-Q-SS, HACG8BLPV-NF, HACG8PV-NF and HACG8SS-NF. |
| Included: | One (1) Non-filtered HydroBoost bottle filler One (1) stainless steel basin |
| UPC / GTIN: | 94902745756 |
| Country of Manufacture: | USA |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Halsey Taylor HydroBoost® Bottle Filling Station RetroFit Kit Non-Filtered Non-Refrigerated. Features shall include Antimicrobial*, Green Counter™, Laminar Flow, Real Drain, Sanitary Sensor Activated. Electronic Bottle Filler Sensor activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120.
