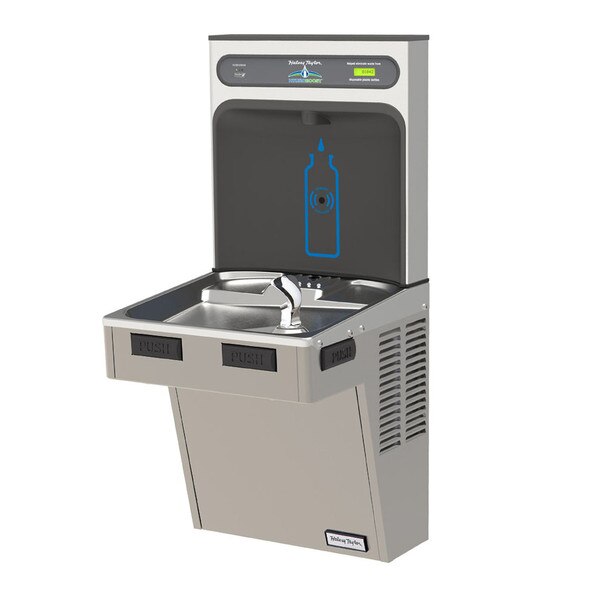

Halsey Taylor HTHB-HAC8PV-WF HydroBoost Bottle Filler & Single Cooler, Filtered, Platinum
The Halsey Taylor HydroBoost Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Complete cooler and bottle filling station in a consolidated space saving ADA compliant design. Bottle Filler features sanitary no-touch sensor activation with automatic 20-second shut-off timer.
- Touchless, sensor-activated bottle filler, designed for easy use; mechanically-activated bubbler continues to supply water in service disruptions.
- Fill rate is 1.1 GPM.
- Visual filter monitor with LED filter status indicator for when filter change is necessary.
- The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.
- Green Counter™ informs user of number of 20 oz. plastic water bottles saved from waste.
- Laminar flow provides clean fill with minimal splash.
This model comes with a Halsey Taylor 55898C filter which is good for 3000 gallons before it will need to be replaced.
It is also compatible with the Elkay 51300C filter which is also good for 3000 gallons before it will need to be replaced but can be bought in multi-packs for savings. And for a longer life filter, choose the Elkay 51600C water filter which lasts twice as long.
Certifications:

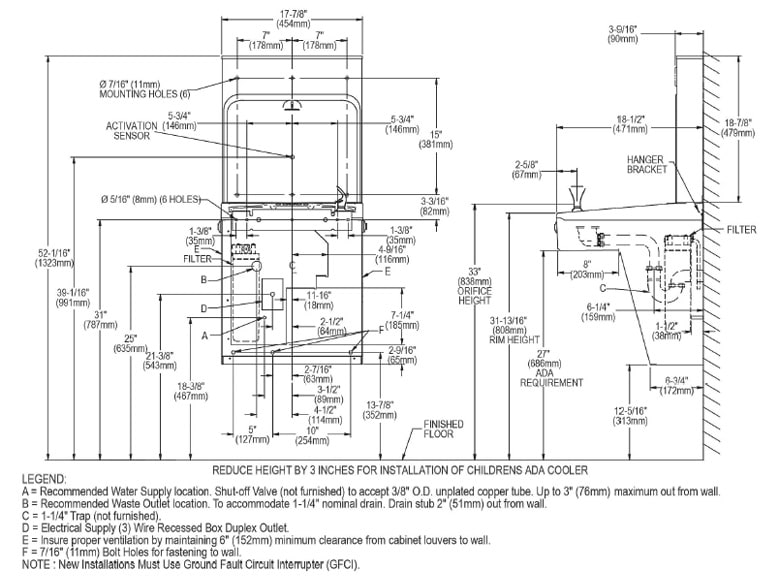

Measurement Diagram:
| Installation Location: | Indoor |
| Number of Stations: | One (1) drinking fountain plus one (1) HydroBoost bottle filling station |
| Mount: | Wall / Surface |
| Operation: | One (1) automatic (infra-red sensor) bottle filler| and one (1) push button drinking fountain |
| Basin(s): | Alcove: Antimicrobial ABS Basin(s) Stainless Steel| Brushed Finish |
| Cabinet(s): | Vinyl Clad Steel (Platinum) |
| Bubbler(s): | Halsey Taylor Double Bubbler |
| Cooled: | Yes |
| Filtered: | Yes | Replacement Filter 55898C |
| Power: | 110-120V (Standard) |
| Status Display: | Filter Status Indicator (Green/Yellow/Red) Green Ticker Display (Counts bottles saved from waste) |
| Overall Dimensions: | 39-3/4" Tall x 17-7/8" Wide x 18-1/2" Deep |
| Rough-in: | Not applicable |
| Shipping Dimensions: | Box 1: 23-11/16" Length x 8-13/16" Width x 24-3/8" Height Box 2: 20-1/2" Length x 19-11/16" Width x 26-3/16" Height |
| Shipping Weight: | 72 lbs. |
| UPC / GTIN: | 94902042800 |
| Manufacturer Model No.: | HTHB-HAC8PV-WF |
| Included: | Water Cooler (8240080741-HTHB) Bottle Filler (HTHB-HAC) |
| Warranty: | Refrigeration: 5 Yr. Manufacturer's Limited All Other.: 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Halsey Taylor HydroBoost® Bottle Filling Station & Single ADA Cooler, Filtered 8 GPH Platinum Vinyl. Chilling Capacity of 8.0 GPH (gallons per hour) of 50 F drinking water, based on 80 F inlet water and 90 F ambient, per ASHRAE 18 testing. Features shall include Mechanically Activated, Sanitary Sensor Activated, Visual Filter Monitor, Filtered, Green Counter™, Laminar Flow, Antimicrobial, Real Drain. Furnished with Double Bubbler ™. Electronic Bottle Filler Sensor With Mechanical Front And Side Bubbler Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
