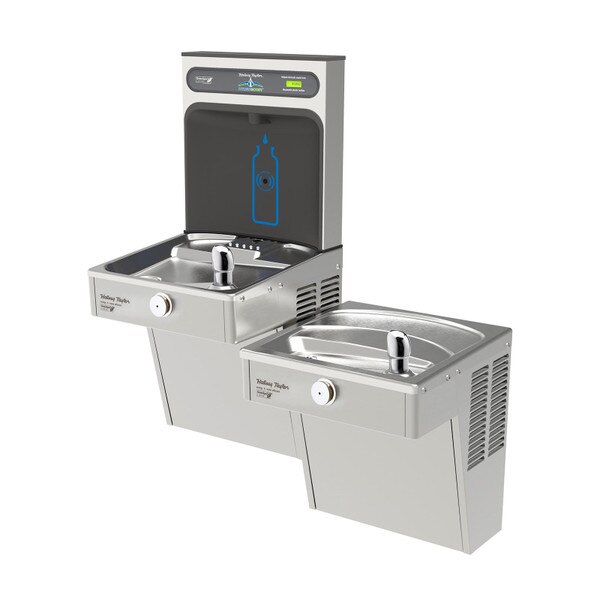

Halsey Taylor HTHB-HVRGRN8BL-NF Bi-Level Fountain & HydroBoost Bottle Filler, Refrigerated, GreenSpec, 110-120V
The Halsey Taylor HydroBoost Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Vandal-resistant cooler and bottle filling station in a consolidated space saving ADA compliant design. Pushbutton activation for bubbler with automatic 20-second shut-off timer on bottle filler.
Touchless, sensor a Touchless, sensor activation (bottle filler) designed for easy use; vandal-resistant, push-button activation for the water cooler. ctivation (bottle filler) designed for easy use; easy-to-operate push-bar activation (bubbler).
High-performance compressor & insulation greatly reduce energy consumption. GreenSpec listed & badged to demonstrate a commitment to sustainability.
Hermetically sealed refrigeration system provides chilled water to satisfy thirst.
Fill rate is 1.1 GPM. Laminar flow provides clean fill with minimal splash. Real drain system eliminates standing water.
Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew.
Vandal-resistant, SmartFlow bubblers feature chrome-plated integral hood guard to prevent contamination, tampering and reduce water usage.
Certifications:

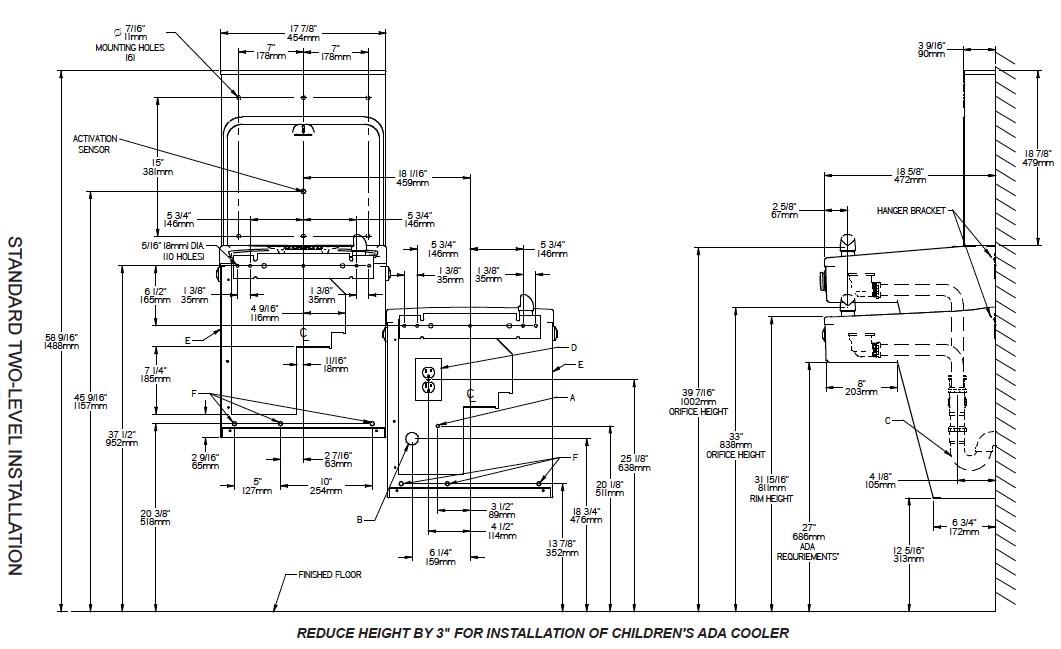

Measurement Diagram:
| Installation Location: | Indoor |
| Number of Stations: | Two (2) drinking fountains plus one (1) HydroBoost bottle filling station |
| Mount: | Wall / Surface |
| Operation: | One (1) automatic (infra-red sensor) bottle filler| and two (2) push button drinking fountains |
| Basin(s): | Alcove: Antimicrobial ABS Basin(s) Stainless Steel| Brushed Finish |
| Cabinet(s): | Stainless Steel| Brushed Finish |
| Bubbler(s): | Chrome Plated Vandal Resistant |
| Cooled: | Yes |
| Filtered: | No |
| Power: | 110-120V (Standard) |
| Status Display: | LCD Green Ticker Bottle Counter |
| Overall Dimensions: | Width: 36-1/8" Depth: 18-5/8" Height: 46-1/4" |
| Rough-in: | Not applicable |
| Shipping Dimensions: | Box 1: 23-11/16" Length x 8-13/16" Width x 24-3/8" Height Box 2: 20-1/2" Length x 19-11/16" Width x 35-5/8" Height |
| Shipping Weight: | 112 lbs. |
| UPC / GTIN: | 94902042985 |
| Manufacturer Model No.: | HTHB-HVRGRN8BL-NF |
| Included: | Water Cooler (8754080083-HTHB) Bottle Filler (HTHB-HAC-NF) |
| Warranty: | Refrigeration: 5 Yr. Manufacturer's Limited All Other.: 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Halsey Taylor HydroBoost® Bottle Filling Station& Bi-Level Vandal-Resistant Cooler High Efficiency Non-Filtered Refrigerated Stainless. Chilling Capacity of 8.0 GPH (gallons per hour) of 50 F drinking water, based on 80 F inlet water and 90 F ambient, per ASHRAE 18 testing. Features shall include Antimicrobial, Green Counter™, High Efficiency, Laminar Flow, Real Drain, Sanitary Sensor Activated, Vandal Resistant. Furnished with Vandal Resistant SmartFlow ™ bubbler. Electronic Bottle Filler Sensor with Mechanical Front Bubbler Button activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120.Unit shall be lead-free design which is certified to NSF/ANSI 61 &372 (lead free) and meets Federal and State low-lead requirements.
Product Group Variations:
