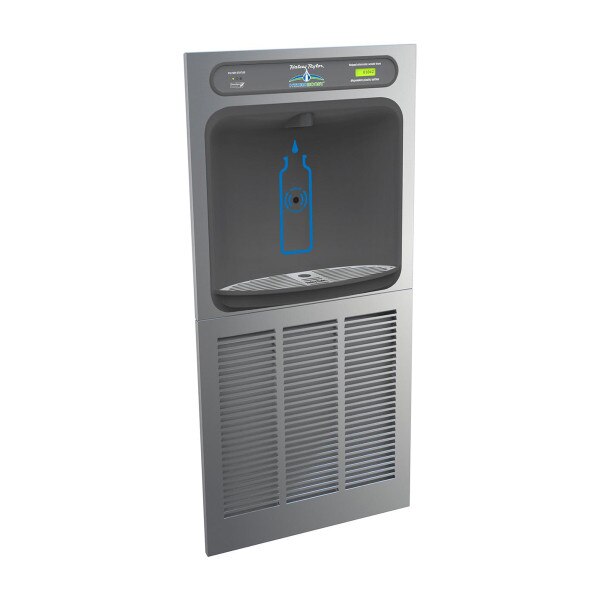

Halsey Taylor HTHB8-WF HydroBoost In-Wall Bottle Filling Station, (Refrigerated, Filtered)
 | Mounting Frame is included |
- Designed as a stand-alone unit or to be paired with Halsey Taylor OVL-II™ or Contour™ architectural fountains
- Touchless, sensor activation (bottle filler) designed for easy use
- Fill rate is 1.1 GPM
- Visual filter monitor with LED filter status indicator for when filter change is necessary
- The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction
- Green Counter™ informs user of number of 20 oz. plastic water bottles saved from waste
This model comes with a Halsey Taylor 55898C filter which is good for 3000 gallons before it will need to be replaced.
It is also compatible with the Elkay 51300C filter which is also good for 3000 gallons before it will need to be replaced but can be bought in multi-packs for savings. And for a longer life filter, choose the Elkay 51600C water filter which lasts twice as long.
Certifications:

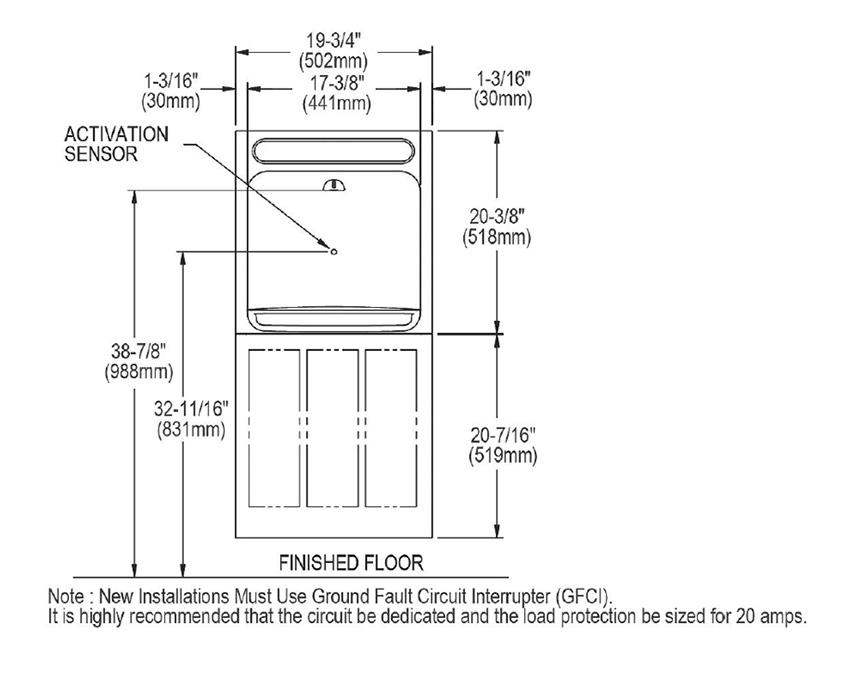

Measurement Diagram:
| Installation Location: | Indoor |
| Number of Stations: | One (1) Bottle Filling Station |
| Mount: | Wall / Recessed |
| Operation: | Automatic (Infra-red sensor) |
| Basin(s): | Antimicrobial ABS alcove with Stainless Steel Grate |
| Cabinet(s): | Stainless Steel, Brushed Finish |
| Bubbler(s): | None |
| Cooled: | Yes |
| Filtered: | Yes | Replacement Filter 55898C |
| Power: | 110-120V (Standard) |
| Status Display: | Filter Status Indicator (Green/Yellow/Red) Green Ticker Display (Counts bottles saved from waste) |
| Overall Dimensions: | L: 19-3/4" W: 3-1/2" H: 40-13/16" |
| Rough-in: | 37-3/4" Tall x 18-3/4" Wide x 12" Deep |
| Shipping Dimensions: | Box 1: 14" Length x 13-11/16" Width x 4-3/16" Height Box 2: 28-1/4" Length x 24-1/4" Width x 12-1/2" Height Box 3: 12-1/2" Length x 15-1/2" Width x 22" Height Box 4: 23-1/4" Length x 4-1/2" Width x 44-1/2" Height |
| Shipping Weight: | 80 lbs. |
| UPC / GTIN: | 94902043012 |
| Manufacturer Model No.: | HTHB8-WF |
| Country of Manufacture: | USA |
| Warranty: | Refrigeration: 5 Yr. Manufacturer's Limited All Other.: 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Halsey Taylor HydroBoost® In-Wall Bottle Filling Station, Filtered 8 GPH Stainless. Chilling Capacity of 8.0 GPH (gallons per hour) of 50 F drinking water, based on 80 F inlet water and 90 F ambient, per ASHRAE 18 testing. Features shall include Sanitary Sensor Activated, Visual Filter Monitor, Filtered, Green Counter™, Laminar Flow, Antimicrobial, Real Drain. Electronic Bottle Filler Sensor activation. Product shall be Wall Mount (Inwall Frame/Plate), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
