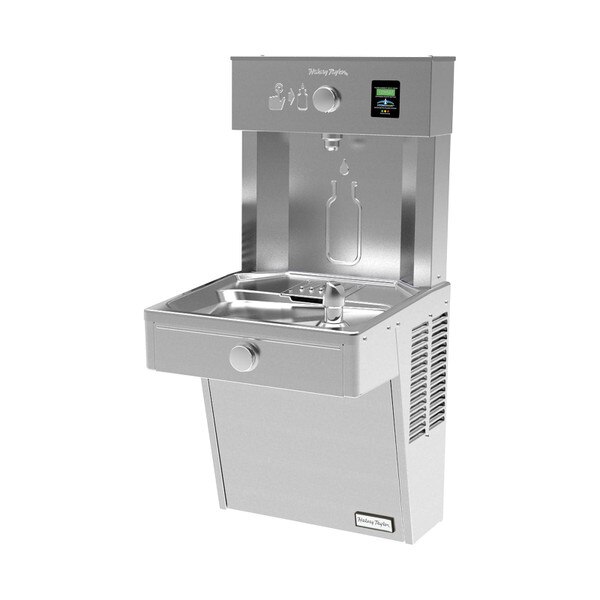

Halsey Taylor HTHBHVR8 Fountain & HydroBoost Bottle Filler, Filtered, Refrigerated, 110-120V
The Halsey Taylor HydroBoost Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles.
Vandal-resistant cooler and bottle filling station in a consolidated space saving ADA compliant design. Pushbutton activation with automatic 20-second shut-off timer on bottle filler.
- Ideal for heavy-use installations such as educational and indoor recreational facilities.
- Vandal-resistant bubblers feature chrome-plated integral hood guard to prevent contamination from other users, airborne deposits and tampering.
- Vandal-resistant, push-button activation for both the bottle filler and the water cooler.
- Hermetically sealed refrigeration system provides chilled water to satisfy thirst. Fill rate is 1.1 GPM. Laminar flow provides clean fill with minimal splash.
- The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.
- Real drain system eliminates standing water.
This model comes with a Halsey Taylor 55898C filter which is good for 3000 gallons before it will need to be replaced.
It is also compatible with the Elkay 51300C filter which is also good for 3000 gallons before it will need to be replaced but can be bought in multi-packs for savings. And for a longer life filter, choose the Elkay 51600C water filter which lasts twice as long.
Certifications:

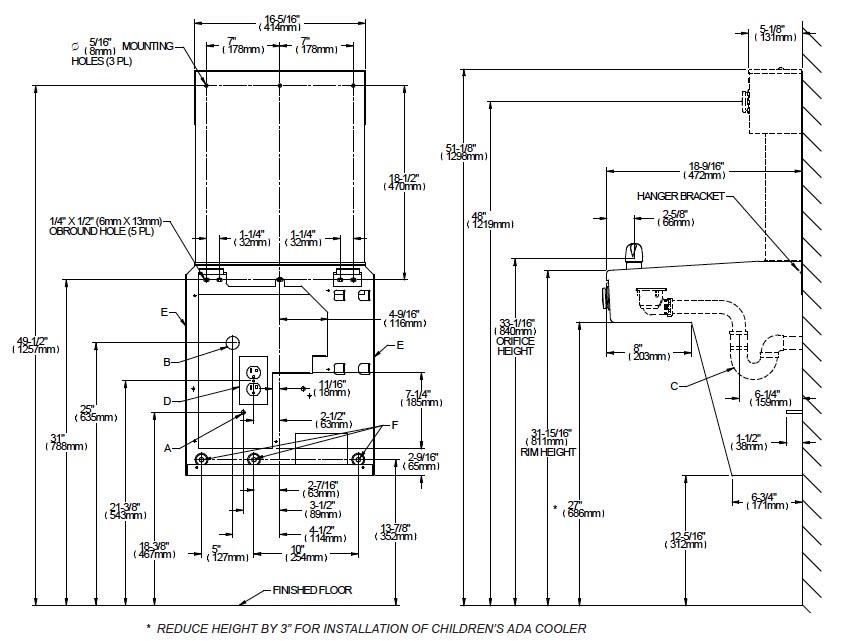

Measurement Diagram:
| Installation Location: | Indoor only |
| Number of Stations: | One (1) drinking fountain plus one (1) HydroBoost bottle filling station |
| Mount: | Wall / Surface |
| Operation: | Push Button |
| Basin(s): | Stainless Steel| Brushed Finish |
| Cabinet(s): | Stainless Steel| Brushed Finish |
| Bubbler(s): | Vandal Resistant |
| Cooled: | Yes |
| Filtered: | Yes | Replacement Filter 55898C |
| Power: | 110-120V (Standard) |
| Status Display: | LCD Green Ticker Bottle Counter |
| Overall Dimensions: | Width: 18" Depth: 18-5/8" Height: 38-13/16" |
| Rough-in: | Not applicable |
| Shipping Dimensions: | Box 1: 22-3/4" Length x 11-1/16" Width x 24-1/4" Height Box 2: 20-1/2" Length x 19-11/16" Width x 26-3/16" Height |
| Shipping Weight: | 88 lbs. |
| UPC / GTIN: | 94902780504 |
| Manufacturer Model No.: | HTHBHVR8 |
| Included: | Water Cooler (CLR-HTHBHVR8) Bottle Filler (HVRHTHB) |
| Warranty: | Refrigeration: 5 Yr. Manufacturer's Limited All Other.: 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Halsey Taylor HydroBoost® Vandal-Resistant Bottle Filling Station & Single ADA Cooler Filtered Refrigerated Stainless. Chilling Capacity of 8.0 GPH (gallons per hour) of 50 F drinking water, based on 80 F inlet water and 90 F ambient, per ASHRAE 18 testing. Features shall include Filtered, Green Counter™, Laminar Flow, Real Drain, Vandal Resistant, Visual Filter Monitor. Furnished with Vandal Resistant bubbler. Electronic Bottle Filler Button with Mechanical Front Bubbler Button activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
