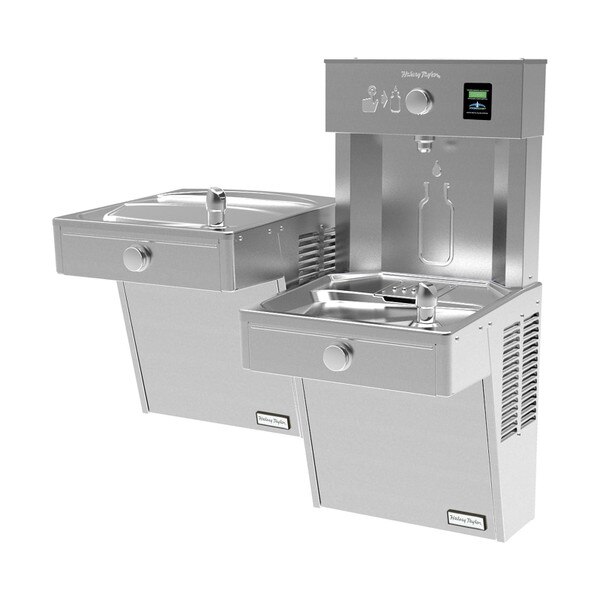

Halsey Taylor HTHBHVR8BL-NF Bi-Level Fountain & HydroBoost Bottle Filler, Refrigerated, 110-120V
The Halsey Taylor HydroBoost Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Vandal-resistant cooler and bottle filling station in a consolidated space saving ADA compliant design. Pushbutton activation with automatic 20-second shut-off timer on bottle filler.
Ideal for heavy-use installations such as educational and indoor recreational facilities.
Vandal-resistant, push-button activation for both the bottle filler and the water cooler.
Vandal-resistant bubblers feature chrome-plated integral hood guard to prevent contamination from other users, airborne deposits and tampering.
Hermetically sealed refrigeration system provides chilled water to satisfy thirst.
Fill rate is 1.1 GPM. Laminar flow provides clean fill with minimal splash. Real drain system eliminates standing water.
Green Counter™ informs user of number of 20 oz. plastic water bottles saved from waste.
Certifications:

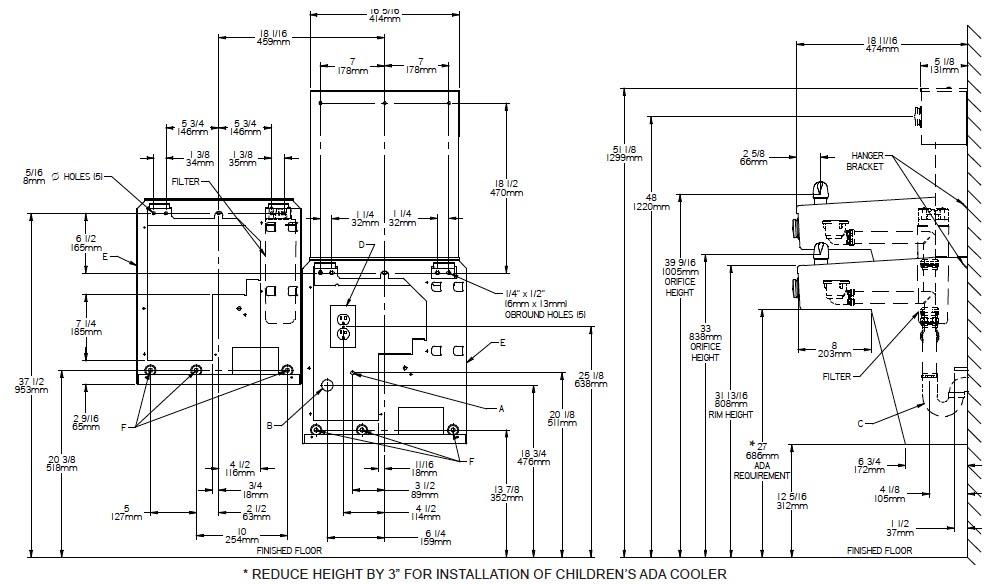

Measurement Diagram:
| Installation Location: | Indoor or outdoor |
| Number of Stations: | Two (2) drinking fountains plus one (1) HydroBoost bottle filling station |
| Mount: | Wall / Surface |
| Operation: | Push Button |
| Basin(s): | Stainless Steel| Brushed Finish |
| Cabinet(s): | Stainless Steel| Brushed Finish |
| Bubbler(s): | Chrome Plated Vandal Resistant |
| Cooled: | Yes |
| Filtered: | No |
| Power: | 110-120V (Standard) |
| Status Display: | LCD Green Ticker Bottle Counter |
| Overall Dimensions: | Width: 36-1/8" Depth: 18-5/8" Height: 45-1/4" |
| Rough-in: | Not applicable |
| Shipping Dimensions: | Box 1: 20-5/8" Length x 20-5/8" Width x 25-13/16" Height Box 2: 22-3/4" Length x 11-1/16" Width x 24-1/4" Height |
| Shipping Weight: | 118 lbs. |
| UPC / GTIN: | 94902772004 |
| Manufacturer Model No.: | HTHBHVR8BL-NF |
| Included: | Water Cooler (CLR-HTHBHVR8BL-NF) Bottle Filler (HVRHTHB-NF) |
| Warranty: | Refrigeration: 5 Yr. Manufacturer's Limited All Other.: 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Halsey Taylor HydroBoost® Vandal-Resistant Bottle Filling Station & Bi-Level ADA Cooler Non-Filtered Refrigerated Stainless. Chilling Capacity of 8.0 GPH (gallons per hour) of 50 F drinking water, based on 80 F inlet water and 90 F ambient, per ASHRAE 18 testing. Features shall include Green Counter™, Laminar Flow, Real Drain, Vandal Resistant. Furnished with Vandal Resistant bubbler. Electronic Bottle Filler Button with Mechanical Front Bubbler Button activation. Product shall be Wall Mount (On Wall), for Indoor + Outdoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
