Halsey Taylor HTHBSM HydroBoost Bottle Filling Station Surface Mt (Non-refrigerated, Non-filtered)
 | IMPORTANT: This product is non-refrigerated. It does NOT cool the water it dispenses. |

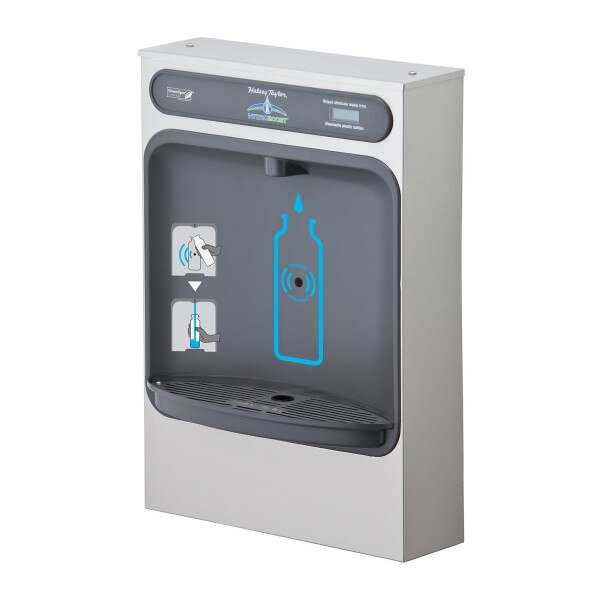

Halsey Taylor stand-alone, wall mount HydroBoost Bottle Filling Station. Touchless operation. Surface mount. Non-Filtered. Non-Refrigerated.
Delivers a clean quick water bottle fill (1.1 GPM with laminar flow to reduce splashes and spills).
Promotes sustainability by minimizing our dependency on (and showing how many saved) disposable plastic bottles. Ideal for installations with limited wall depth. Sanitary no-touch sensor activation with automatic 20-second shut-off timer.
Note: This unit may be paired with a remote chiller (NOT included) to provide refrigerated (cooled) water. See Halsey Taylor SJ1 remote chiller.
- Touchless, sensor-activated design for use in limited wall depth applications
- Fill rate is 1.5 GPM
- Green Counter™ informs user of number of 20 oz. plastic water bottles saved from waste
- Able to pair with a remote chiller
- Laminar flow provides clean fill with minimal splash.
- Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew
Certifications:

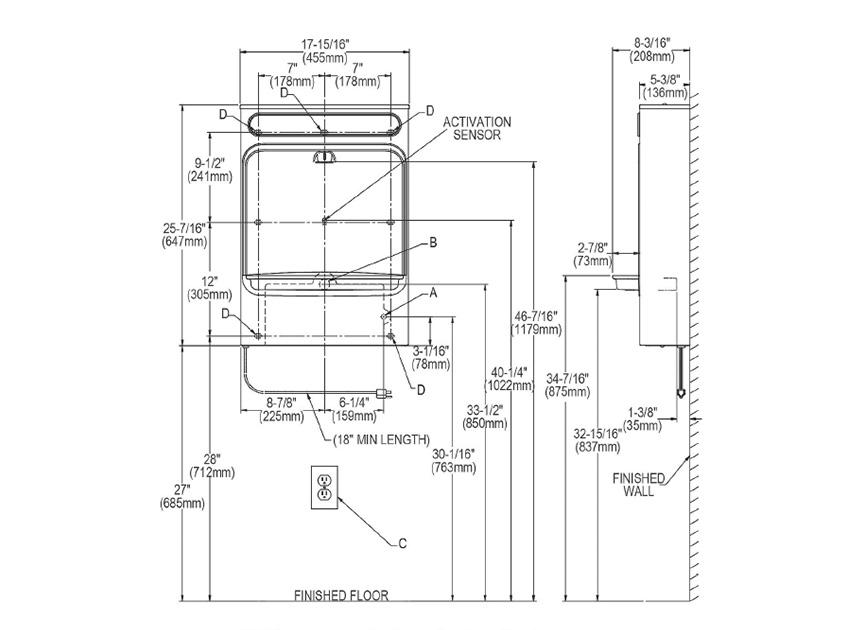

Measurement Diagram:
| Installation Location: | Indoor |
| Number of Stations: | One (1) Bottle Filling Station |
| Mount: | Wall / Surface |
| Operation: | Automatic (Infra-red sensor) |
| Basin(s): | Antimicrobial ABS alcove with Stainless Steel Grate |
| Cabinet(s): | Stainless Steel, Brushed Finish |
| Bubbler(s): | None |
| Cooled: | No |
| Filtered: | No |
| Power: | 110-120V (Standard) |
| Status Display: | Green Ticker Bottle Counter |
| Overall Dimensions: | L: 17-15/16" W: 8-3/16" H: 25-7/16" |
| Rough-in: | Not applicable |
| Shipping Dimensions: | L: 23" W: 14" H: 31" |
| Shipping Weight: | 33 lbs. |
| UPC / GTIN: | 94902767437 |
| Manufacturer Model No.: | HTHBSM |
| Country of Manufacture: | USA |
| Warranty: | 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Halsey Taylor HydroBoost® Bottle Filling Station Surface Mount, Non-Filtered Non-Refrigerated Stainless. Features shall include Sanitary Sensor Activated, Green Counter™, Laminar Flow, Antimicrobial, Real Drain. Electronic Bottle Filler Sensor activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
