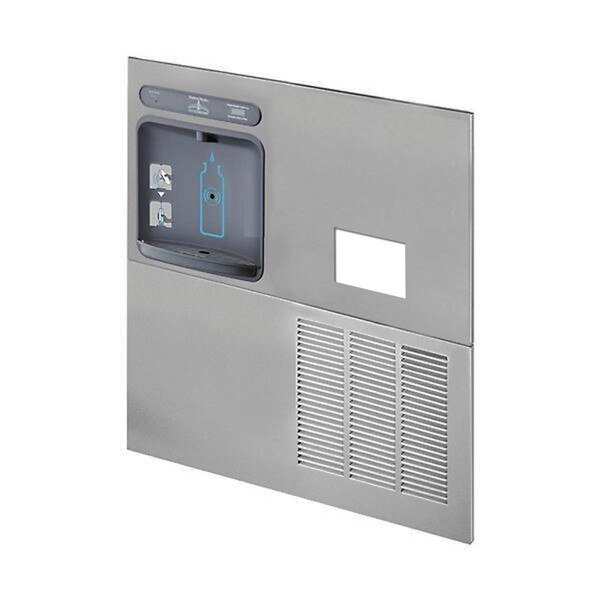

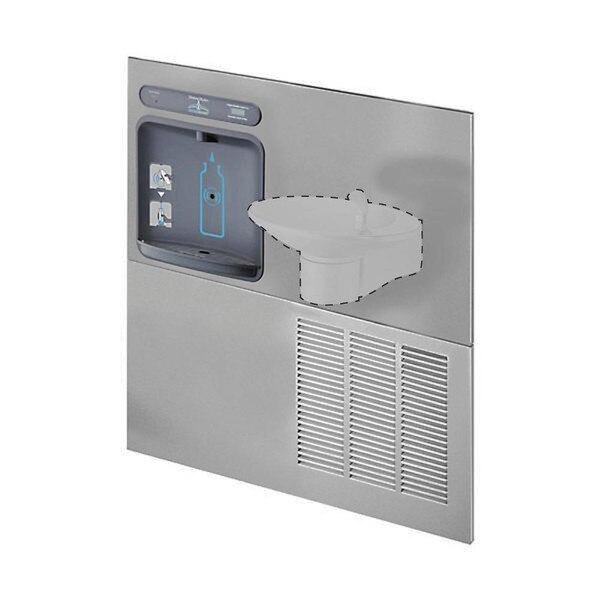

Halsey Taylor HTHBWF-OVL-RF HydroBoost Retrofit Bottle Filling Station, & OVL-II Fountain, Filt.
 | NOTE: This item is a RETROFIT kit. It does not include the water fountain or a chiller unit. |
The Halsey Taylor HydroBoost Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles.
Designed to retrofit existing bi-level refrigerated Contour fountains.
Bottle Filler features sanitary no-touch sensor activation with automatic 20-second shut-off timer.
- HydroBoost® station designed to be retrofitted with an OVL-II™ refrigerated fountain.
- Touchless, sensor activation designed for easy use (bottle filler); easy-to-operate push-button activation (bubbler).
- Fill rate is 1.1 GPM.
- Visual filter monitor with LED filter status indicator for when filter change is necessary.
- The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.
- Green Counter™ informs user of number of 20 oz. plastic water bottles saved from waste.
This model comes with a Halsey Taylor 55898C filter which is good for 3000 gallons before it will need to be replaced.
It is also compatible with the Elkay 51300C filter which is also good for 3000 gallons before it will need to be replaced but can be bought in multi-packs for savings. And for a longer life filter, choose the Elkay 51600C water filter which lasts twice as long.
Certifications:

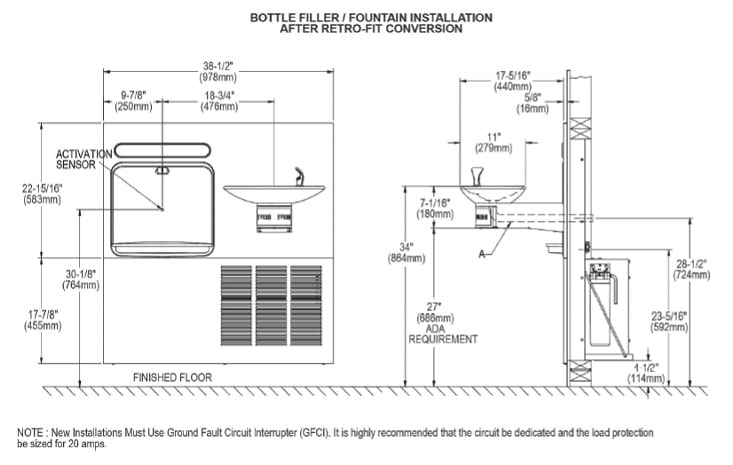

Measurement Diagram:
| Installation Location: | Indoor |
| Number of Stations: | One (1) HydroBoost bottle filling station (and space for one drinking fountain) |
| Mount: | Wall / Recessed |
| Operation: | Adds one (1) automatic (infra-red sensor) bottle filler |
| Basin(s): | Stainless Steel, Brushed Finish |
| Cabinet(s): | Stainless Steel, Brushed Finish |
| Bubbler(s): | Halsey Taylor Double Bubbler |
| Cooled: | Yes |
| Filtered: | Yes | Replacement Filter 55898C |
| Power: | 110-120V (Standard) |
| Status Display: | Filter Status Indicator (Green/Yellow/Red) Green Ticker Display (Counts bottles saved from waste) |
| Overall Dimensions: | 40-13/16" Tall x 38-1/2" Width x 19" Deep |
| Rough-in: | 37-3/4" Tall x 37-1/2" Wide x 12" Deep |
| Shipping Dimensions: | 46.3" Length x 28" Width x 15.8" Height |
| Shipping Weight: | 55 lbs. |
| UPC / GTIN: | 94902016214 |
| Manufacturer Model No.: | HTHBWF-OVL-RF |
| Country of Manufacture: | USA |
| Warranty: | Refrigeration: 5 Yr. Manufacturer's Limited All Other.: 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Halsey Taylor HydroBoost® Retrofit Bottle Filling Station, & OVL-II™ Fountain, Filtered 8 GPH Stainless. Chilling Capacity of 8.0 GPH (gallons per hour) of 50 F drinking water, based on 80 F inlet water and 90 F ambient, per ASHRAE 18 testing. Features shall include Sanitary Sensor Activated, Visual Filter Monitor, Filtered, Green Counter™, Laminar Flow, Antimicrobial, Real Drain. Furnished with Double Bubbler ™. Electronic Bottle Filler Button With Mechanical Front Bubbler Button activation. Product shall be Wall Mount (Inwall Frame/Plate), for Indoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
