Halsey Taylor HTVZ8BLPV-NF Versatile Wall Mount Bi-Level ADA Cooler, Non-Filtered, Platinum
HTVZ water coolers offer an easy-touch front push bar and features an exclusive Halsey Taylor Double Bubbler™. An extra deep basin designed with integrated drain to minimize splashing.
- Barrier-free, ADA design meets adult ADA standards when properly installed.
- Exclusive Double Bubbler provides a satisfying and more fulfilling drink of water.
- Electronic bubbler push bars for easy activation.
- Platinum Vinyl finish is durable and attractive.
Certifications:

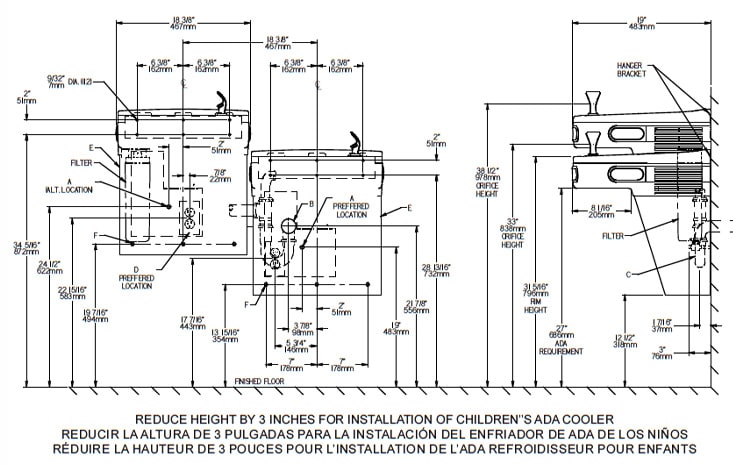

Measurement Diagram:
| Installation Location: | Indoor |
| Number of Stations: | Two (2) drinking fountains |
| Mount: | Wall / Surface |
| Operation: | Push button |
| Basin(s): | Stainless Steel, Brushed Finish |
| Cabinet(s): | Vinyl Clad Steel (Platinum) |
| Bubbler(s): | Halsey Taylor Double Bubbler |
| Cooled: | Yes |
| Filtered: | No |
| Power: | 110-120V (Standard) |
| Status Display: | None |
| Overall Dimensions: | 25-5/16" Tall x 36-3/4" Wide x 19" Deep |
| Rough-in: | Not applicable |
| Shipping Dimensions: | 34" Height x 24" Width x 20" Height |
| Shipping Weight: | 75.9 lbs. |
| UPC / GTIN: | 94902043418 |
| Manufacturer Model No.: | HTVZ8BLPV-NF |
| Country of Manufacture: | USA |
| Warranty: | Refrigeration: 5 Yr. Manufacturer's Limited All Other.: 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Halsey Taylor Versatile Wall Mount Bi-Level ADA Cooler, Non-Filtered 8 GPH Platinum Vinyl. Chilling Capacity of 8.0 GPH (gallons per hour) of 50 F drinking water, based on 80 F inlet water and 90 F ambient, per ASHRAE 18 testing. Furnished with Double Bubbler ™. Electronic Front And Side Bubbler Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
