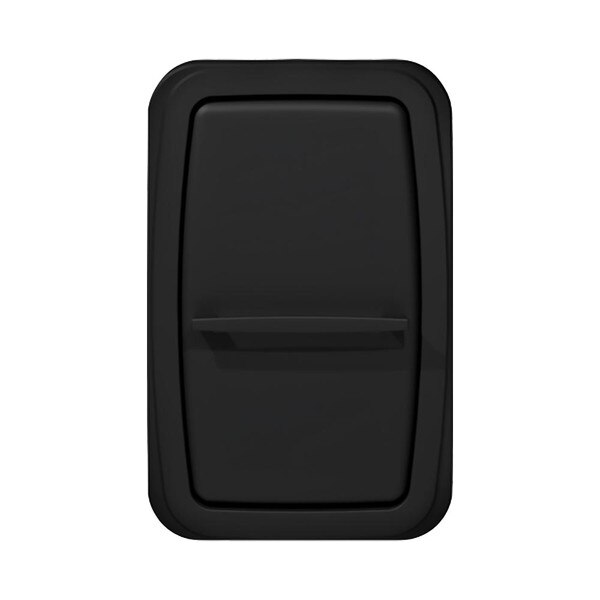

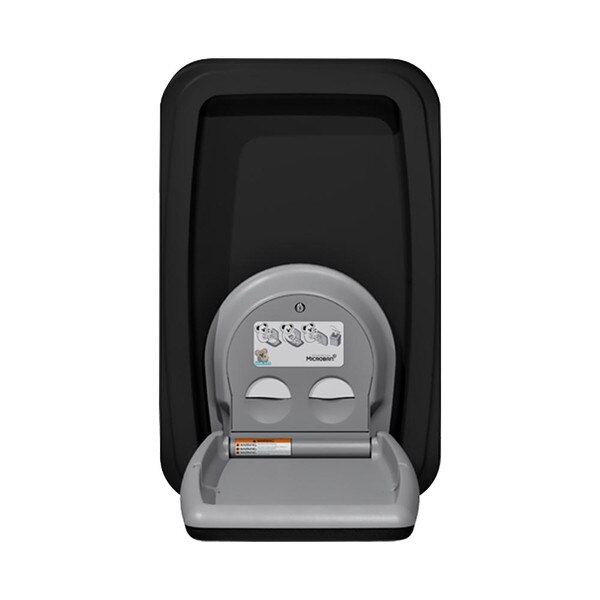

Koala KB311-SSWM-MBLK Vertical Stainless Steel Surface-Mounted Baby Changing Station - Matte Black
 | This product ships LTL on a pallet via freight service. |
- Improved bed liner cavity has an internal spring tab that pushes liners forward, dispensing one at a time. Each cavity holds up to 25 liners and locks to discourage vandalism and waste.
- This product is designed for infants only, up to 3.5 years of age and weighing less than 50 lbs.
- Child protection strap and a separate externally mounted bag hook are included.
- Sturdy external handles on both sides of unit make opening more convenient.
- Bed surface contains integrated Micrban antimicrobial finish, reducing odor causing bacteria.
- ADA Compliant when installed according to instructions.
Measurement Diagram:
| Brand: | Koala |
| Manufacturer Model No.: | KB311-SSWM-MBLK |
| Type: | Vertical |
| Mount: | Wall / Surface |
| Cover / Color: | Matte Black Stainless Steel |
| Bed Material: | Polyethylene |
| Static Load: | Up to 200 lbs. |
| Live Load: | Up to 50 lbs. including child and parcels |
| Mechanism: | Concealed pneumatic cylinder and metal mounting chassis provides controlled, slow opening and closing of bed. |
| Safety Belt: | Nylon Safety Strap |
| Liner Dispenser: | Yes, two. Locking service door. |
| Product Dimensions (Closed): | 26-11/32" Wide x 41-15/32" Tall x 5-9/16" Deep |
| Product Dimensions (Open): | 26-11/32" Wide x 41-15/32" Tall x 36-11/16" Deep |
| Rough-In: | Not applicable |
| Shipping Dimensions: | 44" Length x 29" Width x 8" Height |
| Shipping Weight: | 76 lbs. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | USA |
| Warranty: | 5 Yr. Manufacturer's Limited |
INSTALLATION OVERVIEW
