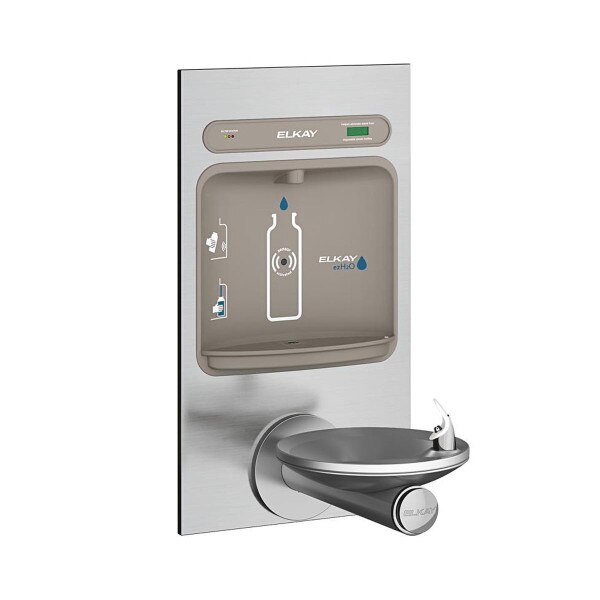

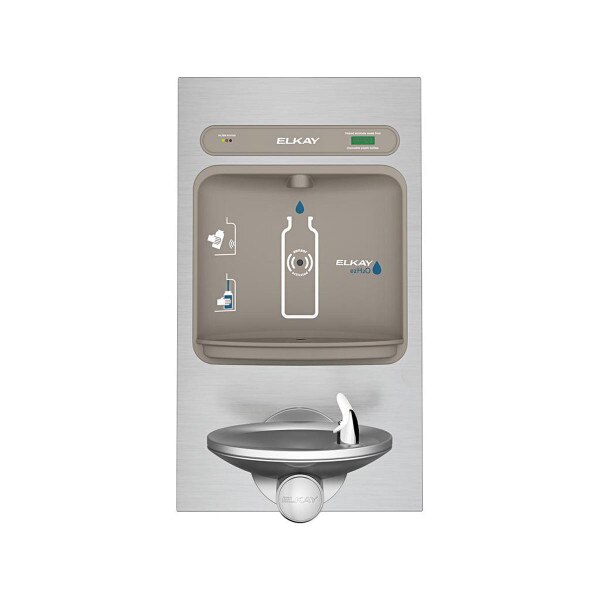

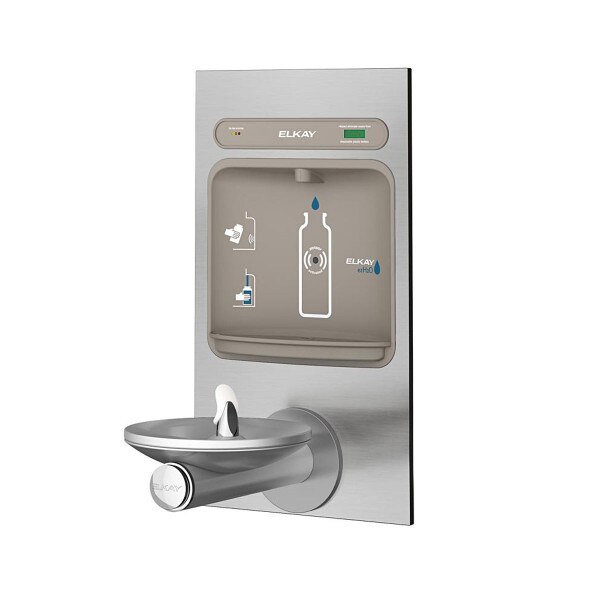

Elkay LZWS-EDFPBM114K In-Wall EZH2O Single SwirlFlo Fountain (Non-refrigerated,Filtered)
 | IMPORTANT: This product is non-refrigerated. It does NOT cool the water it dispenses. |
The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles.
Complete water station including single fountain with integral bottle filler.
Sanitary no-touch sensor activation with automatic 20-second shut-off timer.
SwirlFlo® architectural refrigerated fountains feature sleek styling with a Contoured oval basin designed to provide a splash-resistant surface. Patented stainless steel design enhances any architectural design, whether classic landmark or cutting edge.
- Touchless, sensor activation (bottle filler) designed for easy use; easy-to-operate push-button activation (bubbler).
- Fill rate is 1.5 GPM.
- Visual filter monitor with LED filter status indicator for when filter change is necessary.
- The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.
- Green Ticker informs user of number of 20 oz. plastic water bottles saved from waste.
- Laminar flow provides clean fill with minimal splash.
This model comes with a Elkay 51300C filter which is good for 3000 gallons before it will need to be replaced. For a longer life filter, choose the Elkay 51600C water filter which lasts twice as long.
Certifications:

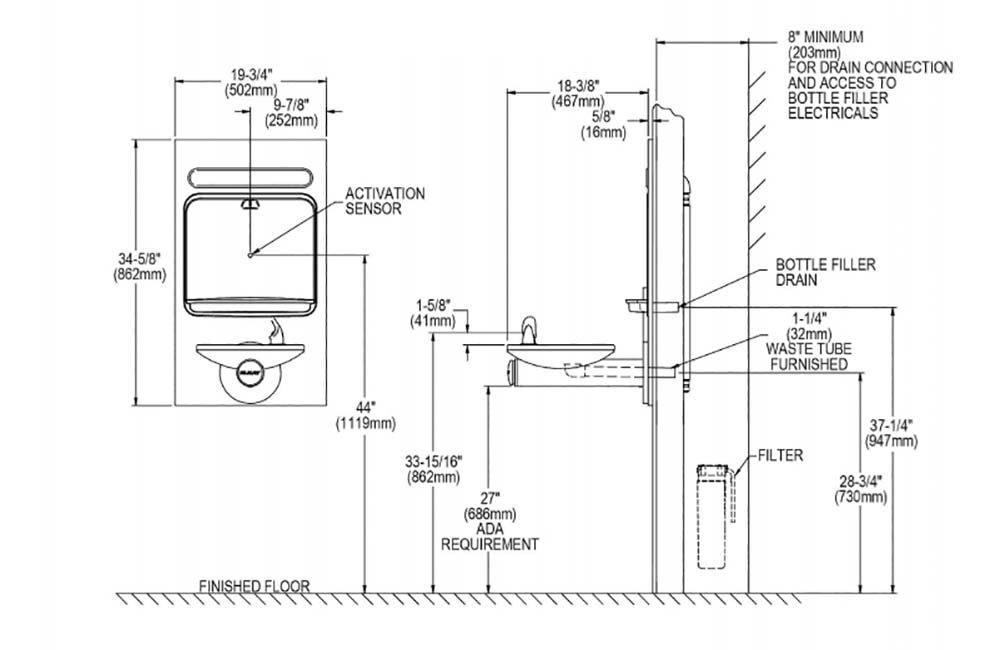

Measurement Diagram:
| Installation Location: | Indoor |
| Number of Stations: | One (1) drinking fountain plus one (1) EZH2O bottle filling station |
| Mount: | Wall / Recessed |
| Operation: | One (1) automatic (infra-red sensor) bottle filler| and one (1) push button drinking fountain |
| Basin(s): | Stainless Steel| Brushed Finish |
| Cabinet(s): | Stainless Steel| Brushed Finish |
| Bubbler(s): | Flexi-Guard Safety Bubbler |
| Cooled: | No |
| Filtered: | Yes | Replacement filter 51300C |
| Power: | 115V/60Hz |
| Status Display: | Filter Status Indicator (Green/Yellow/Red) Green Ticker Display (Counts bottles saved from waste) |
| Overall Dimensions: | 19-3/4" Tall x 19" Width x 34-5/8" Deep |
| Rough-in: | 31-3/4" Tall x 18-3/4" Wide x 3-7/8" Deep |
| Shipping Dimensions: | Box 1: 39-1/4" Length x 19-1/8" Width x 8-1/2" Height Box 2: 41-5/8" Length x 26-1/8" Width x 39-7/8" Height |
| Shipping Weight: | 121 lbs. |
| UPC / GTIN: | 94902045689 |
| Manufacturer Model No.: | LZWS-EDFPBM114K |
| Included: | Fountain with Integral Bottle Filling Station (EDFPBM114WS-F) Mounting Frame (MFWSF100) |
| Warranty: | 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay ezH2O® Bottle Filling Station with Integral SwirlFlo® Fountain, Filtered Non-Refrigerated Stainless. Features shall include Antimicrobial, Filtered, Green Ticker™, Hands Free, Laminar Flow, Real Drain, Visual Filter Monitor. Furnished with Flexi-Guard ® Safety Bubbler. Electronic Bottle Filler Sensor with Mechanical Front Bubbler Button activation. Product shall be Wall Mount (In-wall Frame/Plate), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
