Ponte Giulio G55JCR38N1 90° Angle Floor To Wall Stainless Steel Grab Bar w/Outrigger, Right, 1-1/4" OD
 | Safety Warning: Grab bars are no stronger than the anchors and walls to which they are attached and, therefore, must be firmly secured in order to support the loads for which they are intended. |
Ponte Giulio stainless steel grab bar is manufactured from 304 stainless steel and has a 1.2mm wall thickness. This grab bar is 1.25" in diameter and has concealed installation plates. This product has 330 pound load capacity which exceeds ADA requirements.
Mounting hardware included for wood stud installation.

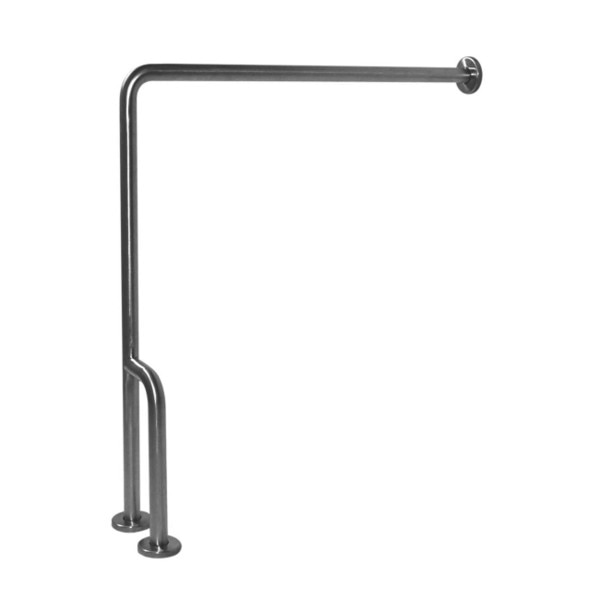

90° Angle floor to wall stainless steel grab bar with outrigger and concealed flange plates, right handed orientation. 1.25” diameter, 1.2mm wall thickness, 304 stainless steel.
Durable & Rust Proof
Lifetime Warranty
Made in Italy
Exceeds ADA Load Requirements

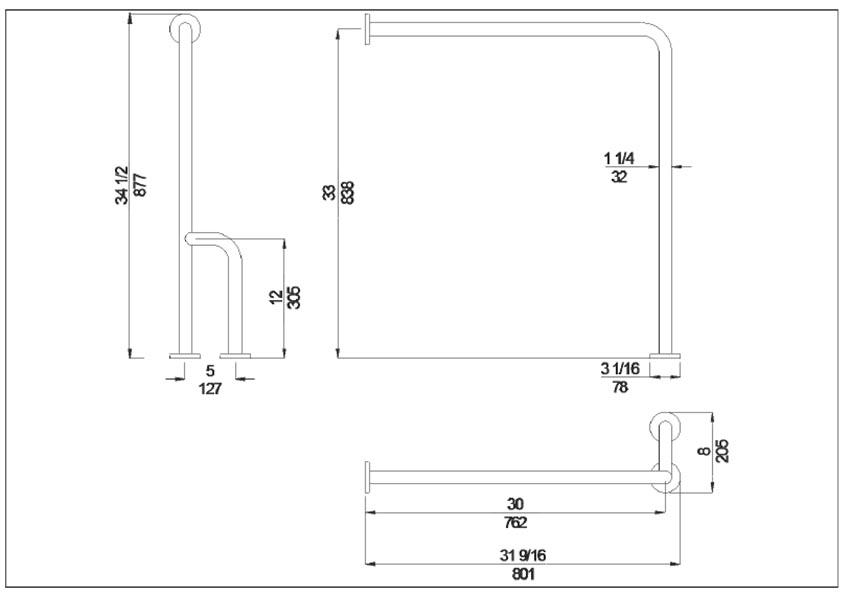

Measurement Diagram:
| Type: | Wall-to-Floor Grab Bar with Outrigger |
| Primary Material: | Stainless Steel |
| Mount Type: | Concealed (Snap Flange) |
| Outside Diameter: | 1-1/4" |
| Rated Width: | 30" |
| Rated Length: | 33" |
| Grip Type: | Smooth |
| Finish / Color: | Satin |
| Load Capacity: | Up to 330 lbs. |
| Bariatric: | No |
| Antimicrobial: | No |
| Overall Dimensions: | 8" Wide x 34-1/2" Tall x 31-9/16" Deep |
| Shipping Dimensions: | 36" Length x 33" Width x 9" Height |
| Shipping Weight: | 5.9 lbs. |
| UPC / GTIN: | 023616098988 |
| Manufacturer Model No.: | G55JCR38N1 |
| Country of Manufacture: | Italy |
| Warranty: | Lifetime Manufacturer's |
