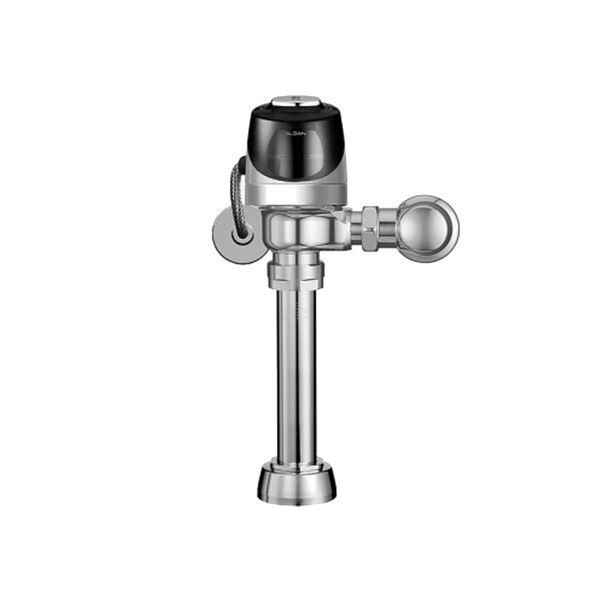

Sloan 3250385 G2 111-1.6-HW Automatic Water Closet (Toilet) Flushometer, 1.6 gpf, Top Spud, Hard Wired

Sloan G2 111 Series exposed sensor flushometer for toilets. Hard wired electrical connection with included 6 VAC step down transformer. 1.6 gallons per flush. Polished chrome finish. Infrared sensor with multiple-focused, lobular sensing fields for high and low target detection provides hands-free (no-touch) operation. User friendly 3 second flush delay. Courtesy flush override button.

1-1/2" Spud coupling and flange for 1-1/2" top spud toilet fixtures. 1" supply pipe, and 1" control stop.

Valve type: flex-tube diaphragm with regulator.

PERMEX synthetic rubber dual filtered flex tube diaphragm for improved life and lower maintenance. Longer lifespan from semi-red brass construction and high copper, low zinc brass castings for de-zincification resistance.

• High back pressure vacuum breaker flush connections with one piece bottom hex coupling nut.
• Sweat solder adapter with cover tube and cast wall flange with set screw.
• Free spinning vandal resistant stop cap.
• 1" I.P.S. Scewdriver Bak-Chek Angle Stop.
• Engineered metal cover with replaceable lens window.
• Fixed metering bypass and no external volume adjustment to ensure water conservation.

Measurement Diagram:
