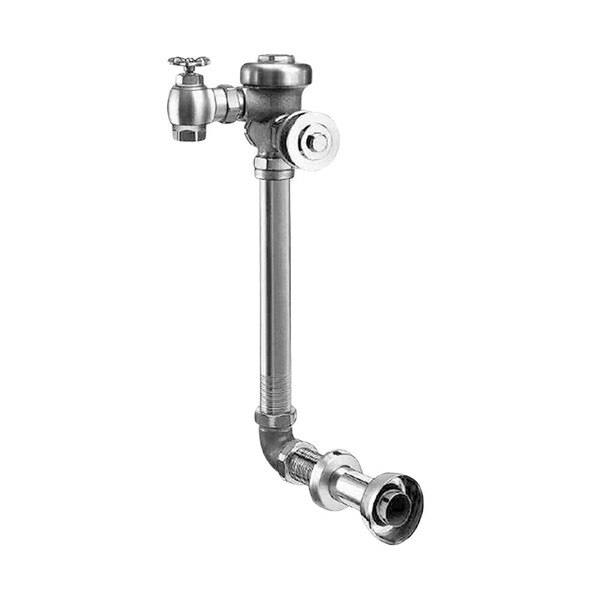

Sloan 3911702 Royal 154-1.6 Concealed Manual Water Closet (Toilet) Flushometer, 1.6 gpf, Rear Spud
Sloan REGAL 110-3.5-XL Series concealed manual flushometer for toilets. 1.6 gallons per flush. Polished chrome finish. Metal direct acting, non-hold-open push button with triple seal handle packing.
1-1/2" Spud coupling and flange for 1-1/2" rear spud toilet fixtures. 1" supply pipe, and 1" control stop.
Valve type: diaphragm with relief valve.
PERMEX synthetic rubber dual filtered fixed bypass diaphragm for improved life and lower maintenance. Longer lifespan from semi-red brass construction and high copper, low zinc brass castings for de-zincification resistance.
- Sweat solder adapter with cover tube and cast wall flange with set screw.
- Diaphragm, button packing and vacuum breaker molded from PERMEX rubber compound for Chloramine resistance
- 24" Rough-in (Elbow Flush Connection, Spud Coupling, Wall and Spud Flanges for 1-1⁄2” Exposed Back Spud)
- 1” I.P.S. Screwdriver Bak-Chek Angle Stop with Free Spinning Vandal Resistant Stop Cap
Measurement Diagram:
| Type: | Water Closet (Toilet) Flushometer, Manual |
| Brand: | Sloan |
| Model No.: | 3911702 (ROYAL 154-1.6-10-3/4-LDIM) |
| Primary Material: | Semi-red Brass |
| Color / Finish: | Polished Chrome |
| Operation: | Manual (Handle) |
| Flush Volume: | 1.6 gpf |
| Fixture Connection: | Rear Spud |
| Supply Pipe: | 1" diameter |
| Valve Type: | Diaphragm |
| Power Type: | None (Manual) |
| Rough-in Dimension: | 24" |
| Spud Coupling: | 1-1/2" |
| Valve Operating Pressure: | 15 – 80 PSI (103 – 552 kPa). Specific toilet fixtures may require greater minimum flowing pressure - consult manufacturer requirements. |
| Override: | N/A |
| Shipping Dimensions: | 12" Length x 12" Width x 12" Height |
| Shipping Weight: | 11.3 lbs. |
| UPC / GTIN: | 671254114319 |
| Country of Manufacture: | United States |
| Additional Comments: | 3 Yr. Manufacturer's Warranty |
