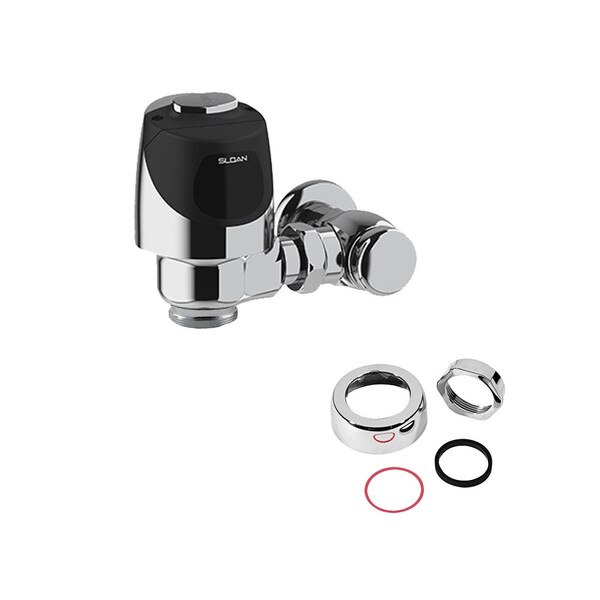

Sloan 3250402 G2 8111-1.6-XYV Automatic Water Closet (Toilet) Flushometer, 1.6 gpf, Top Spud, Less Vacuum Breaker

Sloan G2 8110 Optima Plus Series exposed sensor flushometer for toilets. Battery operated with 4 included AA cells. 1.6 gallons per flush. Polished chrome finish. Infrared sensor with multiple-focused, lobular sensing fields for high and low target detection provides hands-free (no-touch) operation. User friendly 3 second flush delay. Courtesy flush override button.

1-1/2" Spud coupling and flange for 1-1/2" top spud toilet fixtures. 1" supply pipe. 1" Angle Control Stop. Adjustable tailpiece. NO VACUUM BREAKER included.

Valve type: flex-tube diaphragm with regulator.

PERMEX synthetic rubber, dual filtered, fixed bypass, flex tube diaphragm for improved life and lower maintenance. Longer lifespan from semi-red brass construction and high copper, low zinc brass castings for de-zincification resistance.

• Sweat solder adapter with cover tube and cast wall flange with set screw.
• Engineered metal cover with replaceable lens window.
• "Low Battery" Flashing LED.
• Fixed metering bypass and no external volume adjustment to ensure water conservation.
• 1” I.P.S. Screwdriver Bak-Chek Angle Stop with Free Spinning Vandal Resistant Stop Cap.
• PERMEX synthetic rubber main seat, stop seat and vacuum breaker for improved life and lower maintenance.

This model previously featured a "handle body." Now it features a valve body without a handle opening (hence the "Less Handle Body" description in the spec sheet. It now features the newer "squatty body" which has no handle opening (as it was designed for automatic flushometers). This means that this model 3250355 is identical to model 3250400 (which has the updated spec sheet).

Measurement Diagram:
