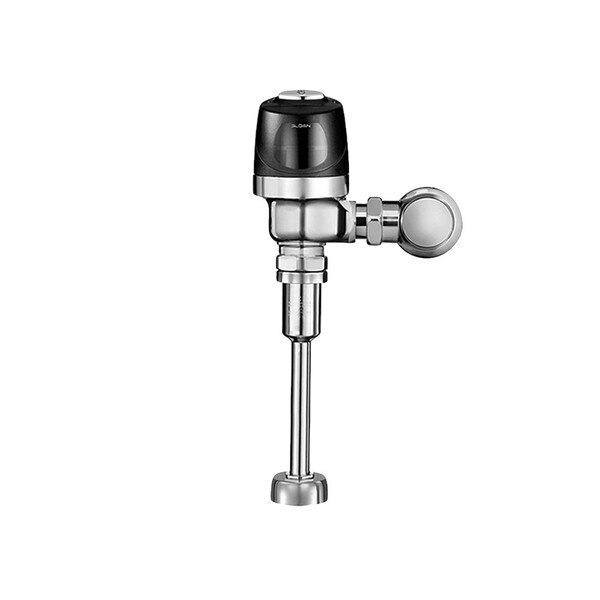

Sloan 3790073 8186-0.125 Sensor Urinal Flushometer, 0.125 gpf, Top Spud
Sloan exposed sensor urinal flushometer. 0.125 gpf (gallons per flush) volume. Diaphragm style valve. Single flush. Top spud. Battery operated (4 AA cells, included). Sweat solder adapter kit. Polished chrome finish on semi-red brass (for greater durability).
Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi- Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037 and ANSI/ASME 112.19.2.
- Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
- Sweat Solder Adapter with Cover Tube
- Courtesy Flush Override Button
- Four (4) Size AA Batteries included. “Low Battery” Flashing LED
- High Chloramine Resistant PERMEX Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
- Engineered Plastic Cover with replaceable Lens Window
Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi- Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037 and ANSI/ASME 112.19.2.
Measurement Diagram:
| Type: | Urinal Flushometer, Sensor |
| Brand: | Sloan |
| Model No.: | 3790073 (SLOAN 8186-0.125) |
| Primary Material: | Semi-red Brass |
| Color / Finish: | Polished Chrome |
| Operation: | Automatic (touchless) |
| Flush Volume: | 0.125 gpf |
| Fixture Connection: | Top Spud |
| Supply Pipe: | 3/4" Diameter |
| Valve Type: | Diaphragm |
| Power Type: | Battery (4 AA, included) |
| Rough-in Dimension: | 11-1/2" |
| Spud Coupling: | 3/4" |
| Valve Operating Pressure: | 15 – 80 PSI (103 – 552 kPa). Specific urinal fixtures may require greater minimum flowing pressure - consult manufacturer requirements. |
| Override: | Courtesy Flush Override Button |
| Shipping Dimensions: | 14" Length x 12" Width x 6" Height |
| Shipping Weight: | 7.3 lbs. |
| UPC / GTIN: | 671254385405 |
| Country of Manufacture: | United States |
| Additional Comments: | 3 Yr. Manufacturer's Warranty |
