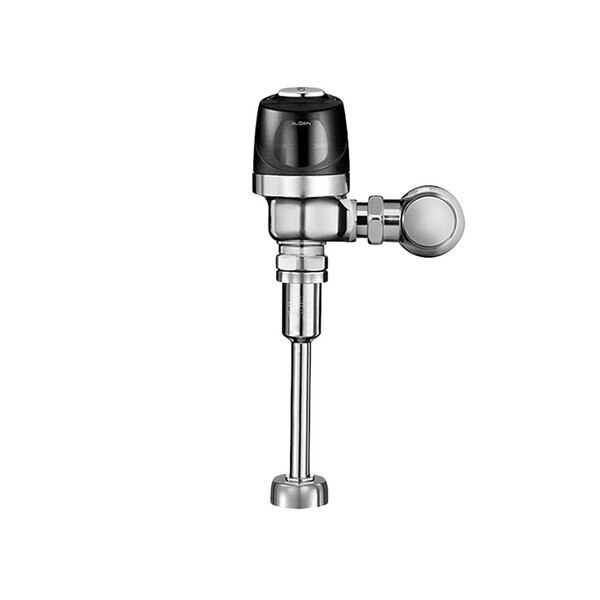

Sloan 3790080 8186-0.5 Sensor Urinal Flushometer, 0.5 gpf, Top Spud (Dual Filtered)
Sloan exposed sensor urinal flushometer. 0.5 gpf (gallons per flush) volume. Diaphragm (Dual-filtered fixed bypass) style valve. Single flush. Top spud. Battery operated (4 AA cells, included). Sweat solder adapter kit. Polished chrome finish on semi-red brass (for greater durability).
Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi- Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037 and ANSI/ASME 112.19.2.
- Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
- Sweat Solder Adapter with Cover Tube
- Courtesy Flush Override Button
- Four (4) Size AA Batteries included. “Low Battery” Flashing LED
- 3⁄4” I.P.S. Screwdriver Bak-Chek® Angle Stop with Vandal Resistant Stop Cap
- Engineered Plastic Cover with replaceable Lens Window
Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi- Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037 and ANSI/ASME 112.19.2.
Measurement Diagram:
| Type: | Urinal Flushometer, Sensor |
| Brand: | Sloan |
| Model No.: | 3790080 (SLOAN 8186-0.5) |
| Primary Material: | Semi-red Brass |
| Color / Finish: | Polished Chrome |
| Operation: | Automatic (touchless) |
| Flush Volume: | 0.5 gpf |
| Fixture Connection: | Top Spud |
| Supply Pipe: | 3/4" Diameter |
| Valve Type: | Diaphragm |
| Power Type: | Battery (4 AA, included) |
| Rough-in Dimension: | 11-1/2" |
| Spud Coupling: | 3/4" |
| Valve Operating Pressure: | 15 – 80 PSI (103 – 552 kPa). Specific urinal fixtures may require greater minimum flowing pressure - consult manufacturer requirements. |
| Override: | Courtesy Flush Override Button |
| Shipping Dimensions: | 14" Length x 12" Width x 6" Height |
| Shipping Weight: | 8.4 lbs. |
| UPC / GTIN: | 671254373099 |
| Country of Manufacture: | United States |
| Additional Comments: | 3 Yr. Manufacturer's Warranty |
