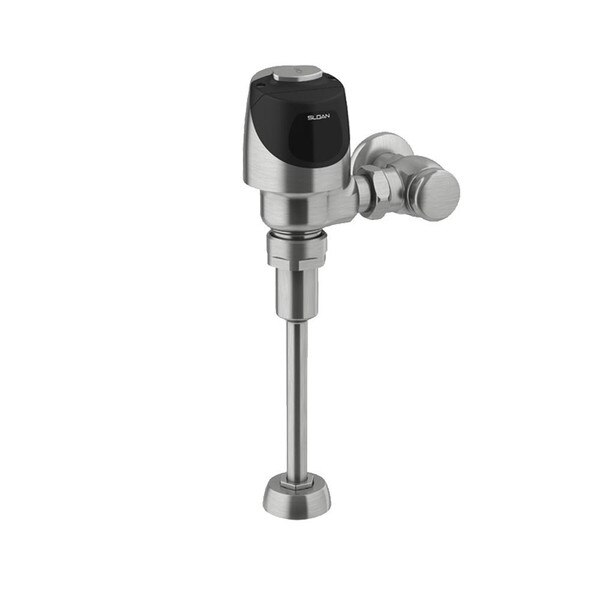

Sloan 3250435 G2 8186-1.0-SF Automatic Urinal Flushometer, 1.0 gpf, Top Spud, Brushed Stainless

(0) No Reviews yet
$1,105.03
SKU: 3250435

Ships from the manufacturer in about 5 business days.

Sloan G2 8110 Optima Plus Series exposed sensor flushometer for urinals. Battery operated with 4 included AA cells. 1.0 gallons per flush. Brushed stainless finish. Infrared sensor with multiple-focused, lobular sensing fields for high and low target detection provides hands-free (no-touch) operation. User friendly 3 second flush delay. Courtesy flush override button. /p>

3/4" Spud coupling and flange for 3/4" top spud urinal fixtures. 3/4" supply pipe. 3/4" Angle Control Stop. Adjustable tailpiece.

Valve type: flex-tube diaphragm with regulator.

Longer lifespan from semi-red brass construction and high copper, low zinc brass castings for de-zincification resistance.

  • Sweat solder adapter with cover tube and cast wall flange with set screw.
  • Engineered metal cover with replaceable lens window.
  • "Low Battery" Flashing LED.
  • Fixed metering bypass and no external volume adjustment to ensure water conservation.
  • 3/4” I.P.S. Screwdriver Bak-Chek Angle Stop with Free Spinning Vandal Resistant Stop Cap.


Measurement Diagram:


Type: Urinal Flushometer, Sensor
Brand: Sloan
Model No.: 3250435 (G2 Optima Plus 8186-1 PVDSF)
Primary Material: Semi-red Brass
Color / Finish: Brushed Stainless
Operation: Automatic (touchless)
Flush Volume: 1.0 gpf
Fixture Connection: Top Spud
Supply Pipe: 3/4" diameter
Valve Type: Fixed Bypass Diaphragm
Power Type: Battery (4 AA, included)
Rough-in Dimension: 11-1/2"
Spud Coupling: 3/4"
Valve Operating Pressure: 15 – 80 PSI (103 – 552 kPa). Specific toilet fixtures may require greater minimum flowing pressure - consult manufacturer requirements.
Override: Yes
Shipping Dimensions: 12" Length x 10" Width x 5" Height
Shipping Weight: 8.6 lbs.
UPC / GTIN: 671254269415
Country of Manufacture: United States
Additional Comments: 3 Yr. Manufacturer's Warranty

Architectural Specifications:

Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi- Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037 and ANSI/ASME 112.19.2.
