Sloan 3250432 G2 8186-1.5-L/STOP Automatic Urinal Flushometer, 1.5 gpf, Top Spud, Less Control Stop

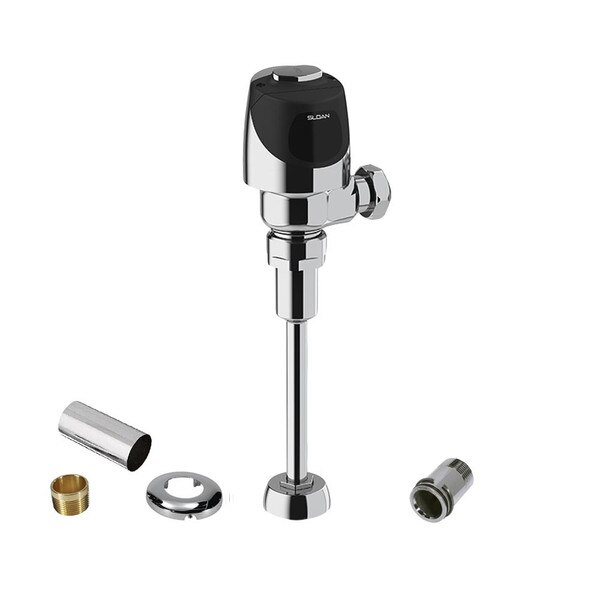

Sloan G2 8110 Optima Plus Series exposed sensor flushometer for urinals. Battery operated with 4 included AA cells. 1.5 gallons per flush. Polished chrome finish. Infrared sensor with multiple-focused, lobular sensing fields for high and low target detection provides hands-free (no-touch) operation. User friendly 3 second flush delay. Courtesy flush override button.
3/4" Spud coupling and flange for 3/4" top spud urinal fixtures. 3/4" supply pipe. Adjustable tailpiece. NO CONTROL STOP included.
Valve type: flex-tube diaphragm with regulator.
Longer lifespan from semi-red brass construction and high copper, low zinc brass castings for de-zincification resistance.
- Sweat solder adapter with cover tube and cast wall flange with set screw.
- Engineered metal cover with replaceable lens window.
- "Low Battery" Flashing LED.
- Fixed metering bypass and no external volume adjustment to ensure water conservation.
Measurement Diagram:
| Type: | Urinal Flushometer, Sensor |
| Brand: | Sloan |
| Model No.: | 3250432 (G2 Optima Plus 8186 L/STOP) |
| Primary Material: | Semi-red Brass |
| Color / Finish: | Polished Chrome |
| Operation: | Automatic (touchless) |
| Flush Volume: | 1.5 gpf |
| Fixture Connection: | Top Spud |
| Supply Pipe: | 3/4" diameter |
| Valve Type: | Fixed Bypass Diaphragm |
| Power Type: | Battery (4 AA, included) |
| Rough-in Dimension: | 11-1/2" |
| Spud Coupling: | 3/4" |
| Valve Operating Pressure: | 15 – 80 PSI (103 – 552 kPa). Specific toilet fixtures may require greater minimum flowing pressure - consult manufacturer requirements. |
| Override: | Yes |
| Shipping Dimensions: | 12" Length x 10" Width x 5" Height |
| Shipping Weight: | 7.0 lbs. |
| UPC / GTIN: | 671254269361 |
| Country of Manufacture: | United States |
| Additional Comments: | 3 Yr. Manufacturer's Warranty |
Architectural Specifications:
Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi- Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037 and ANSI/ASME 112.19.2.
