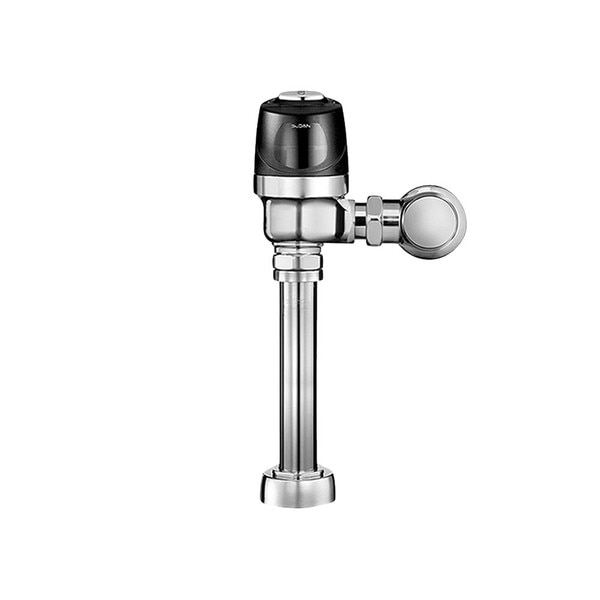

Sloan 3790011 8111-1.6 Automatic Water Closet (Toilet) Flushometer, 1.6 gpf, Top Spud
Sloan exposed style water closet (toilet) sensor (automatic) flushometer. 1.6 gpf (gallons per flush) flush volume. Diaphragm style valve. Single flush. Top spud. Battery operated (four size AA, included). Polished chrome finish on semi-red brass (for greater durability).
- User friendly three (3) second Flush Delay | Courtesy Flush Override Button
- Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
- Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
- Engineered Plastic Cover with replaceable Lens Window
- Sweat Solder Adapter with Cover Tube and Cast Wall Flange
Measurement Diagram:
| Type: | Water Closet (Toilet) Flushometer, Sensor |
| Brand: | Sloan |
| Model No.: | 3790011 (SLOAN 8111-1.6) |
| Primary Material: | Semi-red Brass |
| Color / Finish: | Polished Chrome |
| Operation: | Automatic (touchless) |
| Flush Volume: | 1.6 gpf |
| Fixture Connection: | Top Spud |
| Supply Pipe: | 1" diameter |
| Valve Type: | Diaphragm |
| Power Type: | Battery (4 AA, included) |
| Rough-in Dimension: | 11-1/2" |
| Spud Coupling: | 1-1/2" |
| Valve Operating Pressure: | 15 – 80 PSI (103 – 552 kPa). Specific toilet fixtures may require greater minimum flowing pressure - consult manufacturer requirements. |
| Override: | Electrical |
| Shipping Dimensions: | 14" Length x 12" Width x 6" Height |
| Shipping Weight: | 7.5 lbs. |
| UPC / GTIN: | 671254316683 |
| Country of Manufacture: | United States |
| Additional Comments: | 3 Yr. Manufacturer's Warranty |
Architectural Specifications:
1.6 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Electrical Override, Battery, Sloan® Exposed Sensor Water Closet Flushometer.
