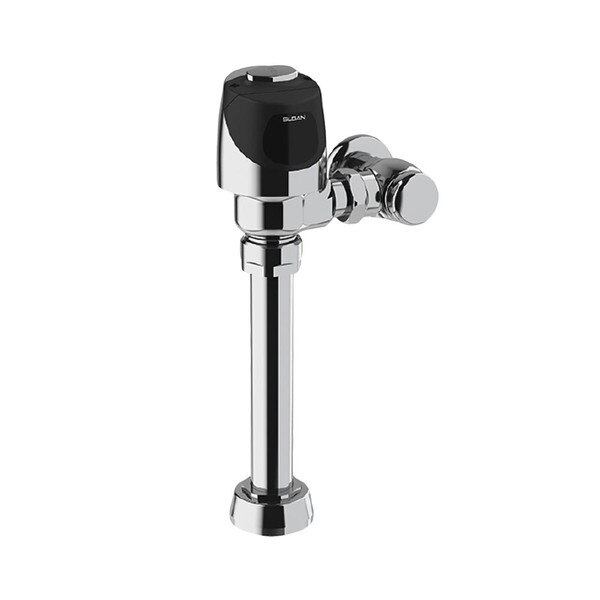

Sloan 3250289 8111-1.28 G2 Automatic Water Closet (Toilet) Flushometer, 1.28 gpf, Top Spud
Sloan G2 exposed style water closet (toilet) sensor (automatic) flushometer. 1.28 gpf (gallons per flush) flush volume. Diaphragm style valve. Single flush. Top spud. Battery operated (four size AA, included). Polished chrome finish on semi-red brass (for greater durability).
- Dual filtered fixed bypass, main seat, stop seat and vacuum breaker molded from PERMEX sythetic rubber compound for Chloramine resistance
- User friendly three (3) second Flush Delay | Courtesy Flush Override Button
- “Low Battery” Flashing LED
- Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
- Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
- WaterSense compliant when used with a 1.28 gpf WaterSense fixture
Measurement Diagram:
| Type: | Water Closet (Toilet) Flushometer, Sensor |
| Brand: | Sloan |
| Model No.: | 3250289 (G2 Optima Plus 8111-1.28) |
| Primary Material: | Semi-red Brass |
| Color / Finish: | Polished Chrome |
| Operation: | Automatic (touchless) |
| Flush Volume: | 1.28 gpf |
| Fixture Connection: | Top Spud |
| Supply Pipe: | 1" diameter |
| Valve Type: | Dual Filtered Fixed Bypass Diaphragm |
| Power Type: | Battery (4 AA, included) |
| Rough-in Dimension: | 11-1/2" |
| Spud Coupling: | 1-1/2" |
| Valve Operating Pressure: | 15 – 80 PSI (103 – 552 kPa). Specific toilet fixtures may require greater minimum flowing pressure - consult manufacturer requirements. |
| Override: | Yes |
| Shipping Dimensions: | 12" Length x 10" Width x 5" Height |
| Shipping Weight: | 8.5 lbs. |
| UPC / GTIN: | 671254342460 |
| Country of Manufacture: | United States |
| Additional Comments: | 3 Yr. Manufacturer's Warranty |
Architectural Specifications:
Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi- Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037 and ANSI/ASME 112.19.2.
