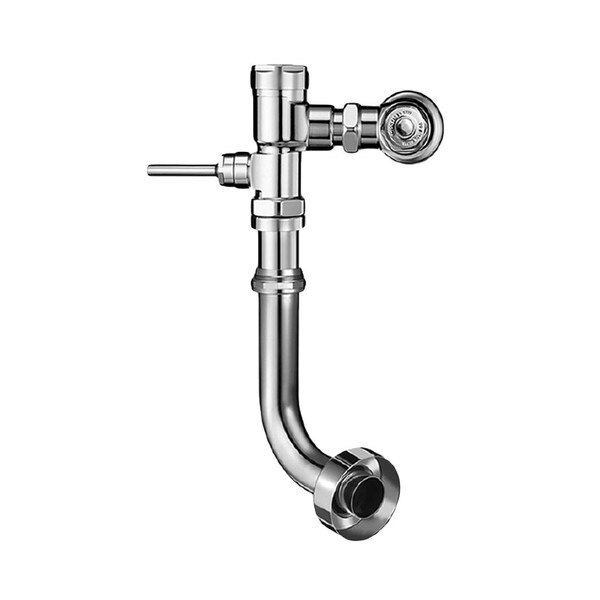

Sloan 3070827 Gem-2 120-1.6-XL Manual Water Closet (Toilet) Flushometer, 1.6 gpf, Rear Spud
Sloan GEM-2 120-1.6-XL Series exposed manual flushometer for toilets. 1.6 gallon per flush. Polished chrome finish. ADA compliant, non-hold-open handle and no external volume adjustment to ensure water conservation.
1-1/2" Spud coupling and flange for 1-1/2" top spud urinal fixtures. 1" supply pipe, and 1" control stop.
Valve type: diaphragm with relief valve.
Longer lifespan from semi-red brass construction and high copper, low zinc brass castings for de-zincification resistance.
- Sweat solder adapter with cover tube and cast wall flange with set screw.
- Vacuum breaker flush connection
- 11-1/2" Rough-in
- 1” I.P.S. Screwdriver Bak-Chek Angle Stop with Free Spinning Vandal Resistant Stop Cap
Measurement Diagram:
| Type: | Water Closet (Toilet) Flushometer, Manual |
| Brand: | Sloan |
| Model No.: | 3070827 (GEM-2 120-1.6-XL) |
| Primary Material: | Semi-red Brass |
| Color / Finish: | Polished Chrome |
| Operation: | Manual (Handle) |
| Flush Volume: | 1.6 gpf |
| Fixture Connection: | Top Spud |
| Supply Pipe: | 1" diameter |
| Valve Type: | Piston |
| Power Type: | None (Manual) |
| Rough-in Dimension: | 11-1/2" |
| Spud Coupling: | 1-1/2" |
| Valve Operating Pressure: | 15 – 80 PSI (103 – 552 kPa). Specific toilet fixtures may require greater minimum flowing pressure - consult manufacturer requirements. |
| Override: | N/A |
| Shipping Dimensions: | 20" Length x 12" Width x 8" Height |
| Shipping Weight: | 6.5 lbs. |
| UPC / GTIN: | 671254135055 |
| Country of Manufacture: | United States |
| Additional Comments: | 3 Yr. Manufacturer's Warranty |
