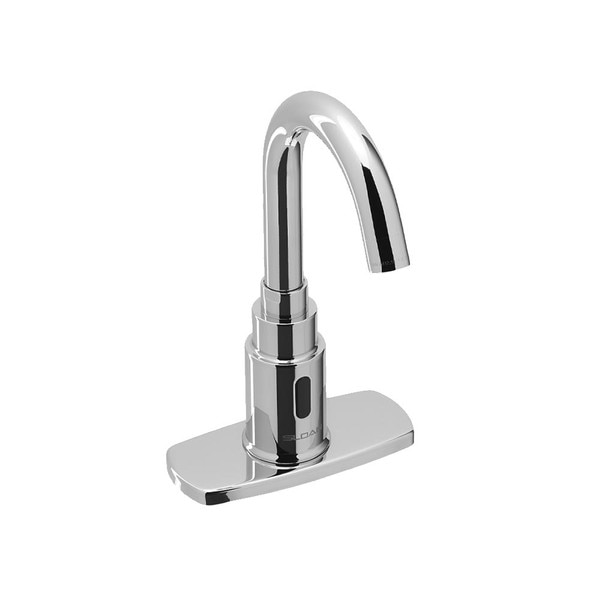

Sloan 3362112 SF-2250-4-BAT-BDM-CP-2.2GPM-LAM-FCT Gooseneck Body Sensor Faucet, Single Hole
Sloan, commercial grade, automatic (sensor activated) gooseneck faucet. 10" Spout height, 5-1/4" spout reach. Battery operated. Adjustable IR sensor range. Polished chrome finish. Includes below-deck manual mixing valve.
2.2 gpm flow rate with 30 second (adjustable) shut-off. Laminar water delivery reduces unnecessary splashing.
Single hole mounting for easier installation with a 4" trim plate provided for a nicer finished presentation. Extended 36" sensor cable and 24" supply hose allow more flexible below deck mounting options.

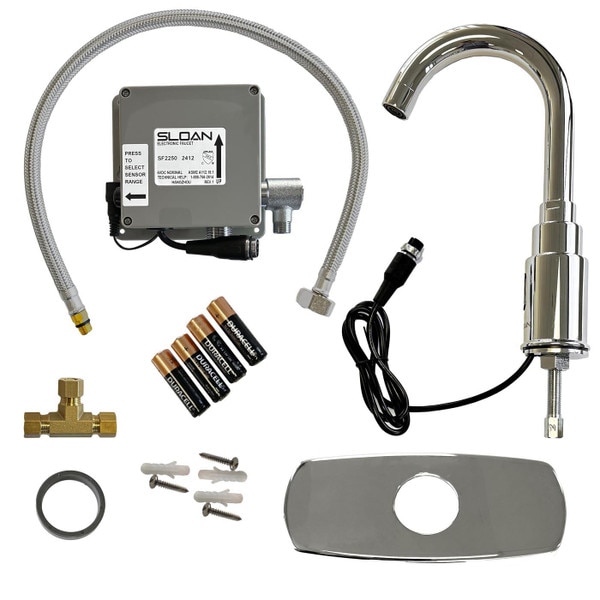

- Includes 4 AA cell batteries (Battery life estimated at 2 years 8,000 cycles/month)
- Filtered Solenoid Valve with serviceable Strainer Filter
- Includes appropriate Mounting Hardware
Measurement Diagram:
| Type: | Gooseneck Faucet, Sensor |
| Brand: | Sloan |
| Model No.: | 3362112 (SF-2250-4-BAT-BDM-CP-2.2GPM-LAM-FCT) |
| Primary Material: | Semi-red Brass |
| Color / Finish: | Polished Chrome |
| Operation: | Automatic (touchless) |
| Power: | Battery: 4 AA (ncluded) Life: 2 years @ 8,000 cycles / month |
| Mount Type: | Single Hole (4" trim plate provided) |
| Delivery: | Laminar (LAM) 2 gpm (1.1 gallons per cycle) |
| Timeout: | 30 Seconds |
| Overal Dimensions (above counter): | 2-1/8" Wide x 10" Tall x approx. 6-1/2" Deep (7-1/4" Spout Drop, 4-1/2" Spout Reach) 4" Wide Trim Plate |
| Shipping Dimensions: | 17" Length x 8.3" Width x 2.75" Height |
| Shipping Weight: | 5.1 lbs. |
| UPC / GTIN: | 671254315457 |
| Country of Manufacture: | USA |
| Warranty: | 1 Yr. Manufacturer's Limited |
| Additional Comments: | Includes appropriate mounting hardware. |
Architectural Specifications:
4" Trim Plate, Battery Power Supply, Below Deck Manual Mixing Valve, Polished Chrome Finish, 2.2 gpm, Laminar Spray, Infrared Sensor, Sloan® Battery-Powered Deck-Mounted Gooseneck Body Faucet.
