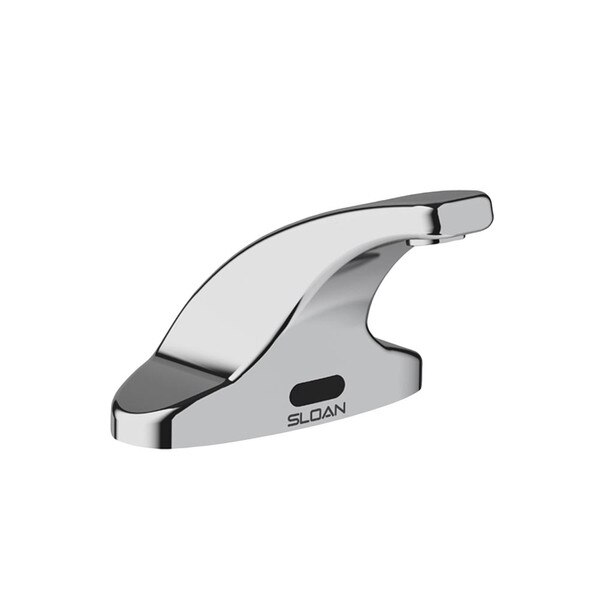

Sloan 3362174 SF-2350-BAT-BDM-CP-0.35GPM-MLM-FCT Pedestal Spout Sensor Faucet
Sloan, commercial grade, ADA compliant, automatic (sensor activated) lavatory faucet. Wide body pedestal spout format (4-3/4" Spout height, 4-1/2" spout reach). Battery operated. Adjustable IR sensor range. Polished chrome finish. Includes below deck manual mixing valve.
Water saving 0.35 gpm flow rate with 30 second (adjustable) shut-off. Multi-laminar spray delivery makes maximum use of water without unnecessary splashing.
4" Centerset mount. Extended 36" sensor cable and 24" supply hose allow more flexible below deck mounting options.
- Includes 4 AA cell batteries (Battery life estimated at 2 years 8,000 cycles/month)
- Filtered Solenoid Valve with serviceable Strainer Filter
- Includes appropriate Mounting Hardware
- CalGreen Compliant, Green Globes Water Credit, IAPMO, LEED V4 Water Efficiency Credit, NSF-61, NYC604.4, Satisfies LEED Credits
Measurement Diagram:
| Type: | Pedestal Faucet, Sensor |
| Brand: | Sloan |
| Model No.: | 3362174 (SF-2350-BAT-BDM-CP-0.35GPM-MLM-FCT) |
| Primary Material: | Semi-red Brass |
| Color / Finish: | Polished Chrome |
| Operation: | Automatic (touchless) |
| Power: | Battery: 4 AA (ncluded) Life: 2 years @ 8,000 cycles / month |
| Mount Type: | 4" Centerset |
| Delivery: | Multi-Laminar (MLM) Spray Type 0.35 gpm (0.175 gallons per cycle) |
| Timeout: | 30 Seconds |
| Overal Dimensions (above counter): | 6-9/32" Wide x 4-45/64" Tall x approx. 5-1/2" Deep (4-39/64" Spout Reach) 4" Wide Trim Plate |
| Shipping Dimensions: | 17" Length x 8.3" Width x 2.75" Height |
| Shipping Weight: | 6.1 lbs. |
| UPC / GTIN: | 671254454118 |
| Country of Manufacture: | USA |
| Warranty: | 1 Yr. Manufacturer's Limited |
| Additional Comments: | Includes appropriate mounting hardware. |
Architectural Specifications:
Battery Power Supply, Below Deck Manual Mixing Valve, Polished Chrome Finish, 0.35 gpm, Multi-Laminar Spray, Infrared Sensor, Sloan® Battery-Powered Deck-Mounted Mid Integrated Base Body Faucet.
