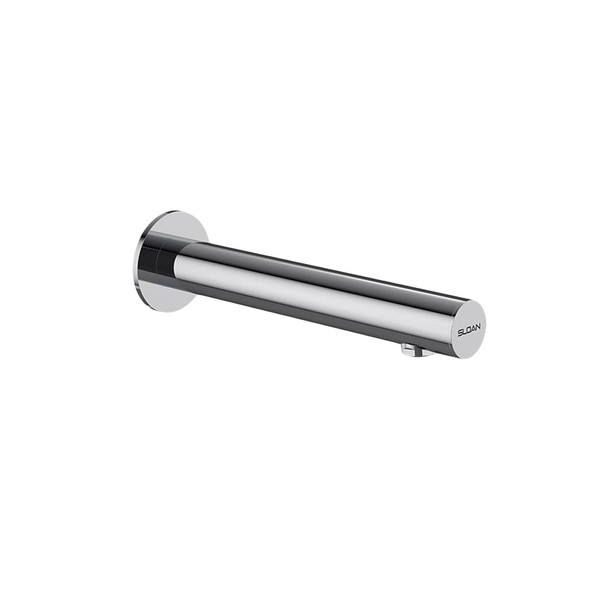

Sloan 33621012 SF-2850-BAT-TEE-CP-0.35GPM-MLM-FCT Wall Mount Sensor Faucet, Single Hole
Sloan, commercial grade, ADA compliant, automatic (sensor activated), wall mounted lavatory faucet. 8-1/2" spout reach). Battery operated. Adjustable IR sensor range. Polished chrome finish. Includes back-check tee.
Water saving 0.35 gpm flow rate with 30 second (adjustable) shut-off. Multi-laminar spray delivery makes maximum use of water without unnecessary splashing.
Single hole mounting for easier installation. Extended 36" sensor cable and 24" supply hose allow more flexible below deck mounting options.
- Includes 4 AA cell batteries (Battery life estimated at 2 years 8,000 cycles/month)
- Filtered Solenoid Valve with serviceable Strainer Filter
- Includes appropriate Mounting Hardware
- CalGreen Compliant, Green Globes Water Credit, IAPMO, LEED V4 Water Efficiency Credit, NSF-61, NYC604.4, Satisfies LEED Credits
The back-check tee provided with this faucet will combine the hot and cold water lines (and prevent back-flow), but will not control the temperature. The hot and cold water mix may need to be adjusted at the source (shut-off) valves or using inline pressure adapters.
Measurement Diagram:
| Type: | Wall Mount Faucet, Sensor |
| Brand: | Sloan |
| Model No.: | 33621012 (SF-2850-BAT-TEE-CP-0.35GPM-MLM-FCT) |
| Primary Material: | Semi-red Brass |
| Color / Finish: | Polished Chrome |
| Operation: | Automatic (touchless) |
| Power: | Battery: 4 AA (ncluded) Life: 2 years @ 8,000 cycles / month |
| Mount Type: | Single Hole, Wall Mount |
| Delivery: | Multi-Laminar (MLM) Spray Type 0.35 gpm (0.175 gallons per cycle) |
| Timeout: | 30 Seconds |
| Overal Dimensions (above counter): | Spout: 1-1/4" Diameter, 9-1/8" Long (8-1/8" Spout Reach) |
| Shipping Dimensions: | 17" Length x 8.3" Width x 2.75" Height |
| Shipping Weight: | 4.1 lbs. |
| UPC / GTIN: | 671254562226 |
| Country of Manufacture: | USA |
| Warranty: | 1 Yr. Manufacturer's Limited |
| Additional Comments: | Includes appropriate mounting hardware. |
Architectural Specifications:
Battery Power Supply, Back-Check Tee, Polished Chrome Finish, 0.35 gpm, Multi-Laminar Spray, Infrared Sensor, Sloan® Battery-Powered Wall-Mounted Wall Body Faucet.
