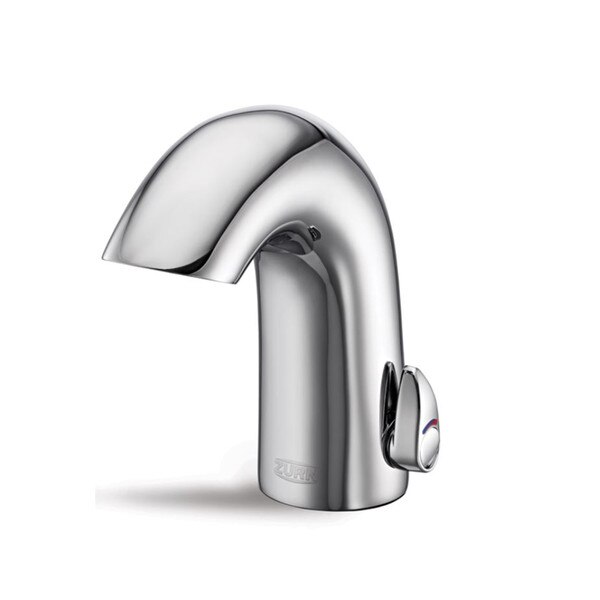

Zurn Z6950-XL-IM-S-F Aqua-FIT Serio Series 1 Hole Faucet w/Integral Above-Deck Mixing Valve and 0.5 GPM Spray Outlet in Chrome
Zurn's Aqua-FIT® Serio Series® Single Post Sensor Faucet with integral mixer combines high functionality and customization with simple installation. This ADA compliant automatic commercial faucet is equipped with an infrared convergence-type proximity sensor, thirty-second time out feature, and chrome-plated cast brass make it an ideal touchless solution for commercial & industrial use.

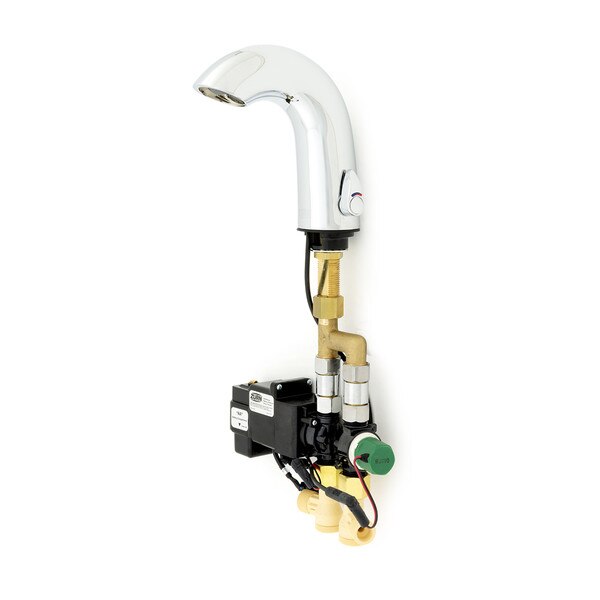

Integral above-deck mixing valve
Streamlined design with concealed sensor lens
Customizable features: time-outs, line purge, sensor range, metering mode
3-year warranty
Uses (4) "AA" Batteries

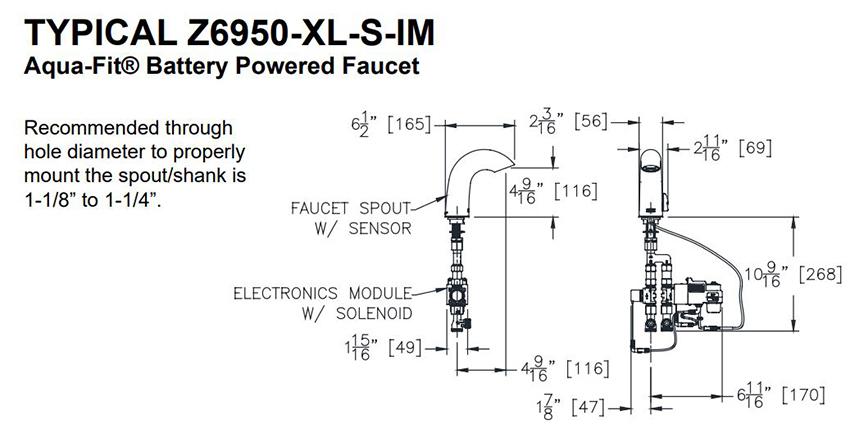

Measurement Diagram:
| Brand: | Zurn |
| Manufacturer Model No: | Z6950-XL-IM-S-F |
| Includes: | Single Hole Faucet, Integral Above-Deck Mixing Valve, 0.5 GPM Spray Outlet |
| Construction: | Chrome-Plated Cast Brass |
| Faucet Holes: | 1 |
| Flow Rate (GPM): | 0.5 |
| Operation: | Automatic |
| Inlet Connection: | 1/2" |
| Mount: | Deck Mount |
| Power: | (4) "AA" Batteries |
| Spout Height Inches: | 6-1/2 |
| Spout Reach Inches: | 4-9/16 |
| Lead Free: | Yes |
| ADA: | Yes |
| Shipping Dimensions: | 12" Length x 12" Width x 4" Height |
| Shipping Weight: | 6 lbs. |
| Country of Manufacture: | TW |
| UPC / GTIN: | 670240967458 |
| Warranty: | 3 Year Manufacturer's Limited |
