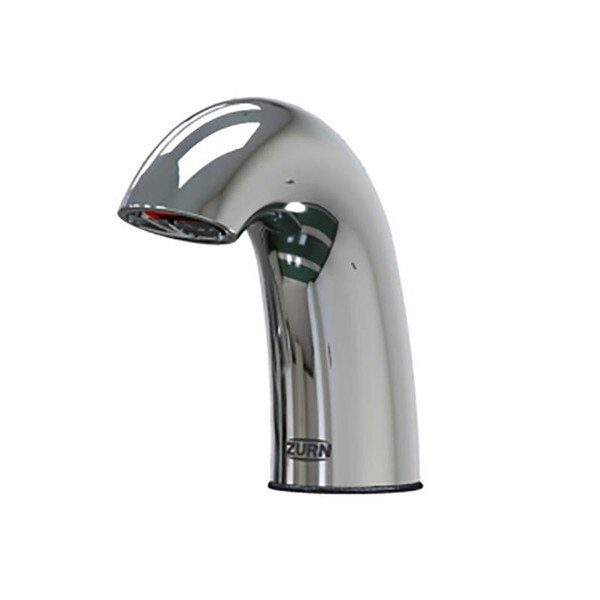

Zurn Z6950-XL-S-F Aqua-FIT Serio Series 1 Hole Sensor Faucet, 0.5 GPM, Spray Outlet, Chrome

Zurn’s Aqua-FIT® Serio Series® Single Post Sensor Faucet combines high functionality and customization with simple installation. Its chrome-plated heavy-duty cast brass body holds up in high-use commercial environments. The battery-powered Z6950-XL-S-F is a single hole, deck-installation with a concealed, downward-facing sensor to help prevent tampering and increase durability. Its convergence-type infrared proximity sensor is accurate and efficient, while the faucet’s 0.5 gpm spray outlet and 30-second timeout feature boost water and cost savings. The Aqua-FIT® Serio Series® offers a quick and easy solution for upgrading any commercial retrofit project.

Aqua-FIT Sensor Faucet System features “Flexible Installation Technology” or the FIT platform. This new FIT platform makes retrofitting a bathroom simple and easy. With just one tool ( a 3/32" Allen Wrench) you can replace the faucet spout or change to a completely new design without having to work below the deck.

• Water-efficient and vandal-proof 0.5 gpm spray outlet with 30-second timeout feature saves water and money

• Battery-powered faucet uses 4 standard AA batteries

• Concealed, downward-facing proximity sensor deters vandalism and improves performance

• Lead-free cast brass appliance with a chrome-plated finish provides durability while complying with the Safe Water Drinking Act

• ADA compliant

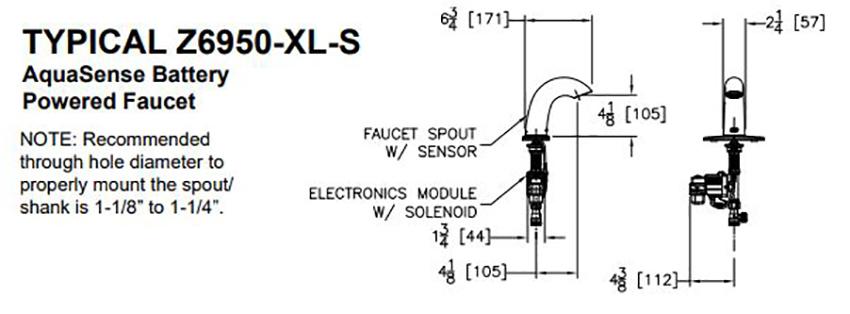

Measurement Diagram:
