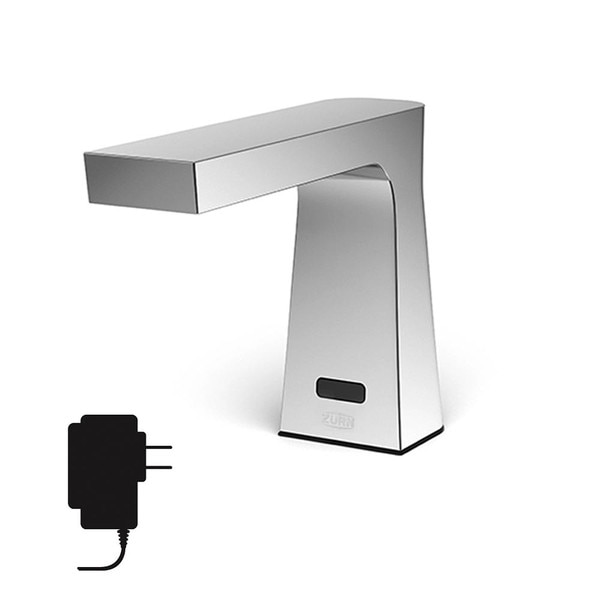

Zurn Z6953-XL-CV-F Camaya 1 Hole Sensor Faucet, EZ Gear Configuration, 0.5 GPM, Chrome, Plug-In Powered

Designed for modern commercial restrooms, the Camaya Series faucet delivers a superior user experience in both form and function. This unit maintains a sleek and simple design that can be paired with matching soap dispenser (Z6953-SD) for an automatic, easy to install and user-friendly handwashing solution. This unit features a 0.5 GPM spray outlet, hands-free operation, and is AC plug-in powered (included).

Performance goes farther with the dual action of the ceramic disc cartridge and motor gear driven technology which incorporates the same tested and proven design from Zurn’s EZ flush sensor units. Compared to traditional solenoid faucets, the ceramic disc cartridge eliminates old compression sealing technology meaning there are fewer moving parts in direct contact with the water way and less wear on the system resulting in improved reliability, precision, and consistency.

• Proven gear-driven operation provides a soft close, ultimately delivering an effortless, quiet hands-free operation with 30 second time out feature

• Reliable ceramic disc cartridge technology withstands over 1,000,000 cycles

• Efficient lead free, low-flow outlet meets WaterSense Compliance

• Sleek, contemporary design. See matching sensor soap dispenser (Z6953-SD) for a coordinated, modern style

• ACA (7.5 VDC) Plug-In Power Converter included

•

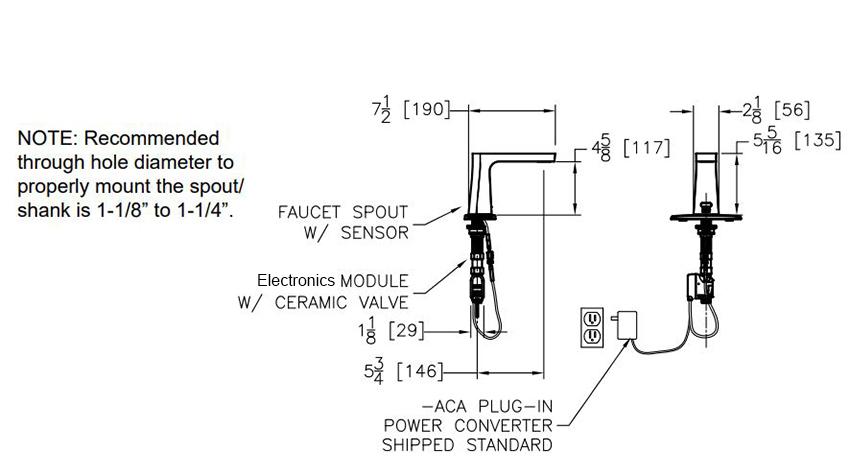

Measurement Diagram:
