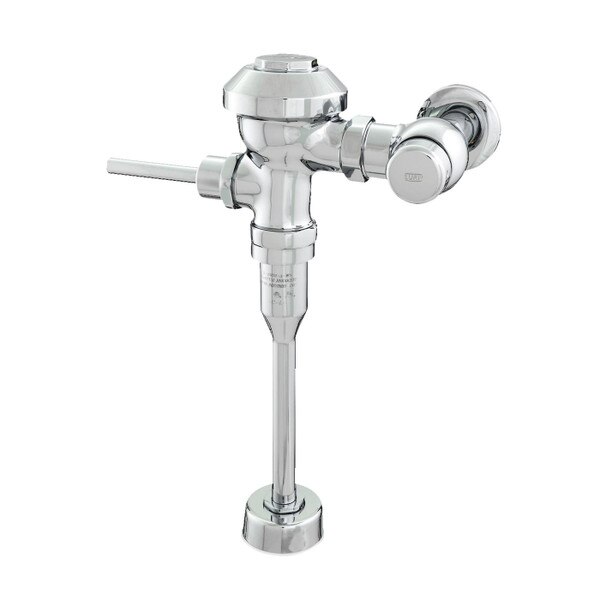

Zurn Z6003PL-WS1 AquaFlush® PLUS Manual Urinal Flush Valve, 1.0 GPF, 11.5" Valve Height, Exposed
Zurn Aquaflush® Plus exposed quiet diaphragm flush valve for 3/4" Top Spud Urinals. ADA compliant handle with no-leak seal technology. Non-hold open operation. 1.0 GPF (Gallons per Flush).
Control Stop has internal siphon-guard protection, sweat solder kit, wall flange with set screw
High back pressure vacuum breaker with one piece hex coupling nut.
Adjustable tailpiece
Spud coupling and flange for top spud connection
Clog resistant bypass.
Zurn Limited 3-year warranty
Certifications:
Measurement Diagram:
| Brand: | Zurn AquaFlush® |
| Manufacturer Model No: | Z6003PL-WS1 |
| For Use With: | Urinal |
| Operation: | Manual |
| Flush Override: | Not applicable |
| Gallons Per Flush (GPF): | 1.0 |
| Construction: | Exposed, quiet diaphragm-type, chrome plated flushometer valve with a polished chrome exterior. Chloramine resistant, dual seal diaphragm with a clog resistant by-pass. |
| Overall Dimensions: | 11-31/32" Wide x 13-11/16" Tall x 3-9/32" Deep |
| Shipping Dimensions: | 9.5" Length x 5" Width x 10" Height |
| Shipping Weight: | 6 lbs. |
| UPC / GTIN: | 670240552845 |
| Country of Manufacture: | USA |
| Warranty: | 3 Year Zurn Limited |
Warnings:
 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Architectural Specifications:
Exposed, quiet diaphragm-type, chrome plated flushometer valve with a polished exterior. Complete with a chloramine resistant, dual seal diaphragm with a clog resistant by-pass. The valve is ADA compliant with a nonhold open and no leak handle feature. Internal seals are made of chloramine resistant materials.
