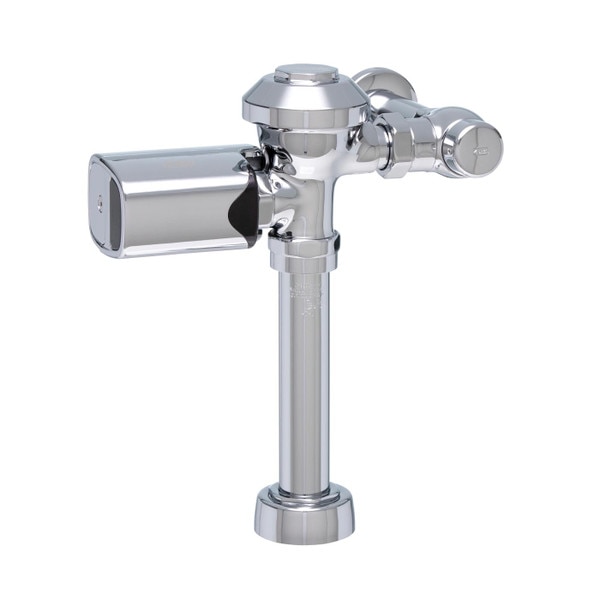

Zurn ZER6000PL-HET-SM AquaFlush® PLUS Automatic Toilet Flush Valve, 1.28 GPF, 11.5" Valve Height, Fully Mechanical Flush Override

The ZER6000PL-HET-SM is an automatic flush valve for water closets (toilets). 1.28 GPF (Gallons per Flush). AquaFlush Plus are furnished with a sweat solder kit, vandal resistant stop cap, and cast wall flange with set screw. Internal seals are made of chloramine resistant materials. This flush valve features an exposed, quiet diaphragm-type, chrome plated, flushometer valve with a polished exterior. Complete with Zurn's 1.28 gpf AquaVantage® TPE chloramine resistant, dual seal diaphragm with a clog resistant by-pass. The valve incorporates a 6VDC motor actuator, a battery powered automatic sensor, high impact resistant polycarbonate housing and chrome plated metal cover with fully mechanical manual override push button and 10 degree angled sensor, high back pressure vacuum breaker, one piece hex coupling nut, adjustable tailpiece, spud coupling and flange for top spud connection. Control stop has internal siphon-guard protection.

• AquaFlush Plus unit - includes the AquaFlush diaphragm kit with vandal resistant control stop

• Clog-resistant diaphragm

• Chrome-plated metal E-Z Flush sensor unit with 3-year battery life

• Chemical resistant gaskets and seals for extended service life with lower maintenance costs

• Fully mechanical flush override button

• Zurn Limited 3-year warranty

---

Certifications:



---

Measurement Diagram:

---
