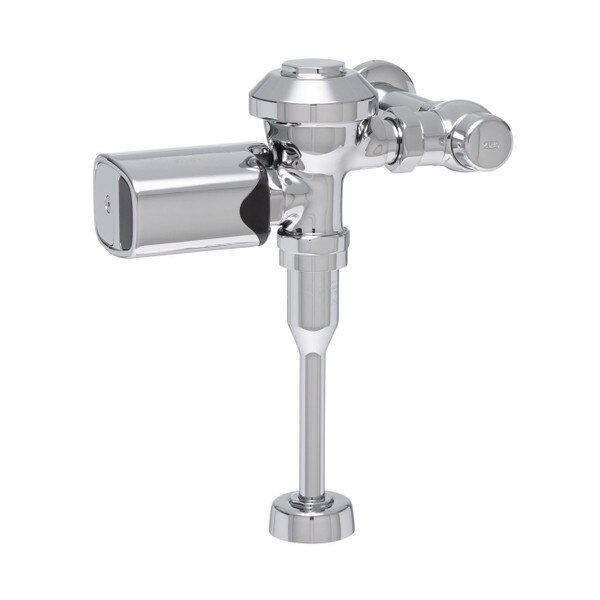

Zurn ZER6003PL-EWS-SM AquaSense® Automatic Urinal Flush Valve, 0.5 GPF, 11.5" Valve Height, Fully Mechanical Flush Override
Aquaflush® sensor operated chrome plated flushometer valve for urinals. Quiet diaphragm-type, with chemical resistant gaskets and seals for extended service life with lower maintenance costs. 0.5 GPF (Gallons per Flush). Clog-resistant linear bypass diaphragm. Fully mechanical flush override button.
Chrome-plated metal E-Z Flush sensor unit with 3-year battery life
Control Stop has internal siphon-guard protection and vandal resistant stop cap, Sweat solder kit, wall flange with set screw
High back pressure Vacuum Breaker with one piece hex coupling nut
Chloramine resistant Internal seals
Adjustable tailpiece
Zurn Limited 3-year warranty
Certifications:
Measurement Diagram:
| Brand: | Zurn AquaSense® |
| Manufacturer Model No: | ZER6003PL-EWS-SM |
| For Use With: | Urinal |
| Operation: | Automatic |
| Flush Override: | Fully mechanical |
| Gallons Per Flush (GPF): | 0.5 |
| Construction: | Exposed, quiet diaphragm-type, chrome plated flushometer valve with a polished exterior. Complete with chloramine resistant, dual seal diaphragm with a clog resistant by-pass. |
| Overall Dimensions: | 11" Wide x 14" Tall x 4" Deep |
| Shipping Dimensions: | 15" Length x 9.5" Width x 5" Height |
| Shipping Weight: | 9.5 lbs. |
| UPC / GTIN: | 889934252828 |
| Country of Manufacture: | USA |
| Warranty: | 3 Year Zurn Limited |
Warnings:
 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Architectural Specifications:
Exposed, quiet diaphragm-type, chrome plated flushometer valve with a polished exterior. Complete with chloramine resistant, dual seal diaphragm with a clog resistant by-pass. The valve incorporates a 6VDC motor actuator, a battery powered automatic sensor, high impact resistant polycarbonate housing and chrome plated plastic cover with manual override push button and 10 degree angled sensor.
