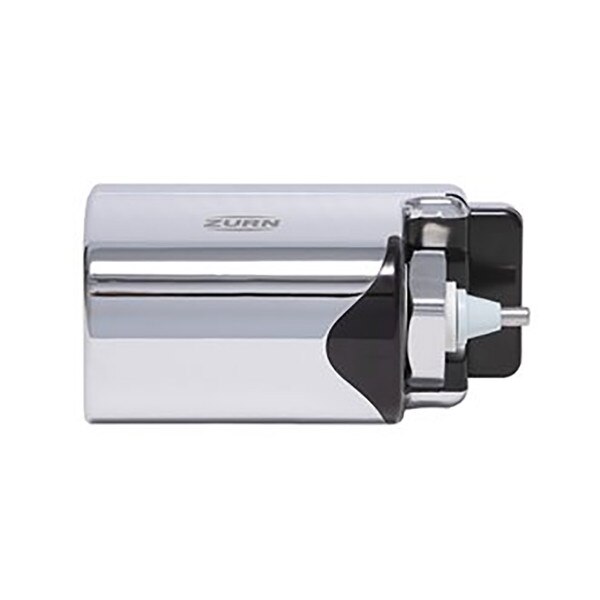

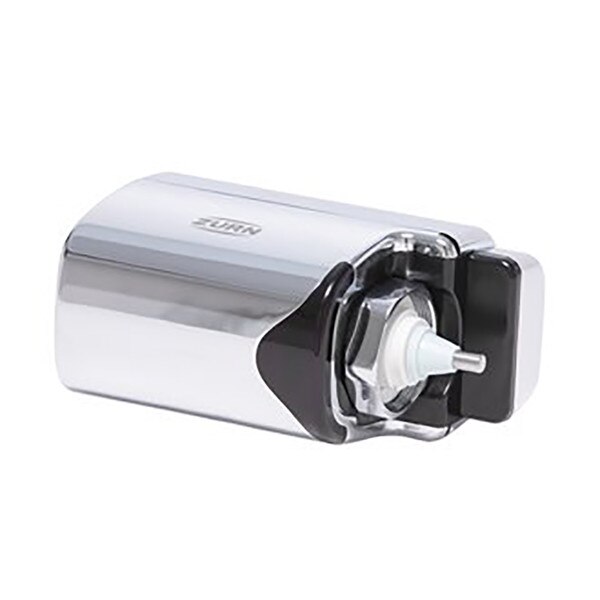

Zurn ZERK-SM AquaSense® E-Z Flush Sensor Retrofit Kit for Toilet or Urinal, Chrome Plated Metal Cover, Fully Mechanical Override
The EZ Flush Sensor Retrofit Kit is the easiest touchless upgrade for a handle-operated water closet or urinal flush valve, providing a hygienic user experience. In addition to touchless infrared sensor activation, its true mechanical manual override button delivers on-demand flushing.
The sensor unit’s sleek design and reliable, battery-powered gear-driven technology improve the look, lifespan and operation of most existing flush valves. With a quick three-minute installation, the EZ Flush Sensor Retrofit Kit helps reduce material waste by replacing only the handle instead of the entire flush valve, saving materials, costs and time. Chrome-plated metal finish provides durability. ADA compliant
True mechanical manual override button delivers on-demand flushing
Touchless, accurate infrared sensor activation supports a hygienic environment by eliminating touchpoints
Gear-driven operation outperforms and outlasts solenoids
Side-mount design allows for a quick, three-minute installation

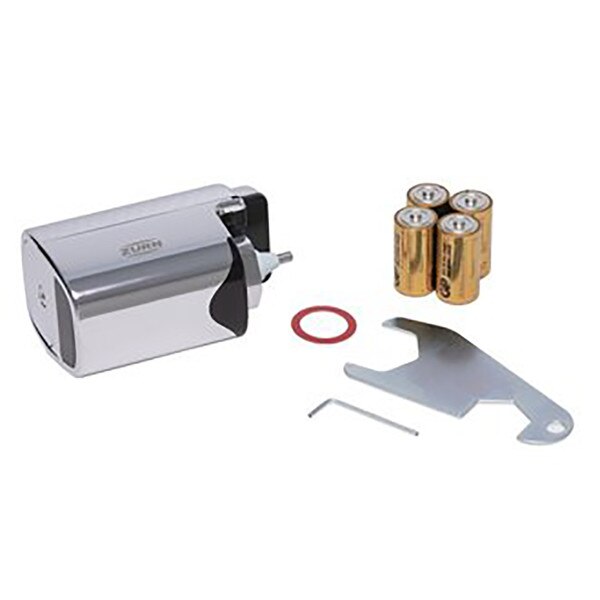

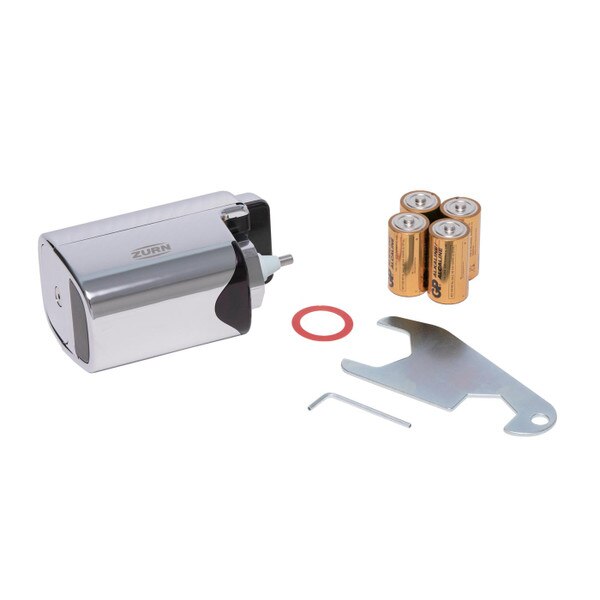

Unit includes four C-size batteries
Toggle feature allows for optional 24-hour line flushing to help minimize stagnation and maintain fixture trap seals to protect against sewer gases during periods of inactivity
Certifications:
Measurement Diagram:
| Brand: | Zurn AquaSense® |
| Manufacturer Model No: | ZERK-SM |
| For Use With: | Urinal or Water Closet (Toilet) |
| Operation: | Automatic |
| Flush Override: | Fully mechanical |
| Gallons Per Flush (GPF): | Not published |
| Construction: | Chrome plated metal cover, fully mechanical flush override button |
| Overall Dimensions: | 5-5/8" Wide x 2-3/4" Tall x 3-5/8" Deep |
| Shipping Dimensions: | 6" Length x 6" Width x 6" Height |
| Shipping Weight: | 8 lbs. |
| UPC / GTIN: | 889934250992 |
| Country of Manufacture: | USA |
| Warranty: | 3 Year Zurn Limited |
Warnings:
 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Architectural Specifications:
Zurn EZ Flush® Retrofit Kits are reliable and easily installed sensor retrofit kits for converting manual flush valves to hands-free operation. Ideal for commercial applications where converting to hands-free flush operation is desired. Installation is completed by simply removing the existing handle and installing the side mounted sensor retrofit kit. Unit is sensor-operated with four, C-size batteries (included) and features a true mechanical manual override button that delivers on-demand flushing.
