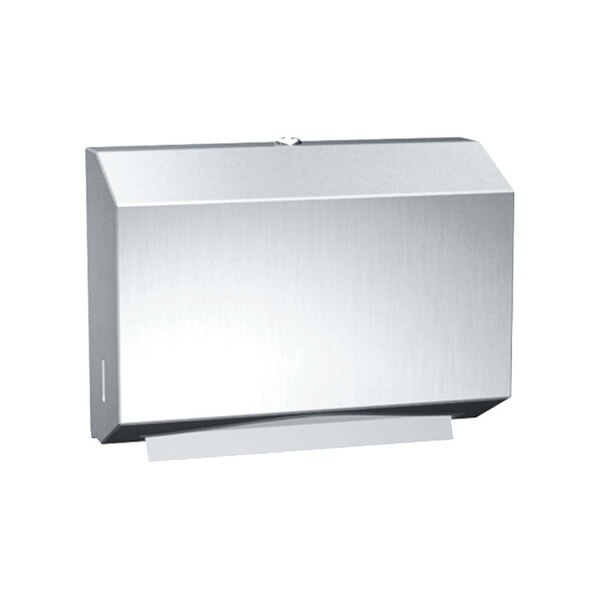

ASI 10-0215 Paper Towel Dispenser, Multi/C-Fold, Surface Mount, Stainless Steel (200C/275M)
Well-suited for low traffic areas, this unit is similar to the 0210 but reduced capacity to dispense 200 C-fold or 275 multi-fold paper towels without adjustment or adapters and is fitted with tumbler lock and heavy-duty stainless steel piano hinge.
| Type: | C-Fold / Multi-Fold Paper Towel Dispenser |
| Primary Material: | Stainless Steel |
| Color / Finish: | Satin (Brushed) |
| Installation Type: | Wall / Surface |
| Capacity: | 200 C-Fold or 275 Multi-Fold Paper Towels |
| Power: | No power required |
| ADA Compliant: | Yes |
| Overall Dimensions: | 11" Wide x 8" Tall x 4" Deep |
| Rough-In: | Not Applicable |
| Shipping Dimensions: | 12" Length x 9" Width x 5" Height |
| Shipping Weight: | 3.3 lbs. |
| Manufacturer Model No.: | 10-0215 |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Warranty: | Warranted to be free from defects in material and workmanship for a period of one (1) year from date of invoice. |
| Additional Comments: | Tumbler lock uses ASI key: E-114. |
Architectural Specifications:
Surface Mounted Petite Paper Towel Dispenser shall hold and dispense 200 standard C-fold or 275 standard multi-fold paper towels and shall be fabricated 22 gauge type 304 stainless steel alloy 18-8. All exposed surfaces shall have a No 4 satin finish and shall be protected during shipment with PVC film easily removable after installation. Towel dispensing slot shall have a fully hemmed-in rolled edge for snag-free dispensing and user safety. Dispenser door shall be attached to the bottom of unit with a concealed full length 3/16" diameter (Ø4.8) heavy duty stainless steel multi-staked piano hinge and shall be held closed with a tumbler lock keyed alike to other ASI washroom equipment. Structural assembly of body and door components shall be of welded construction. Unit shall be provided with refill viewer slots on each side. Unit shall have internal towel stack guides. Wall shall be protected against uncontrolled door-drop damage by self- limiting body and hinge construction. Dispenser shall enable simplified installation by hanging on pre-installed screw pattern (by others).
