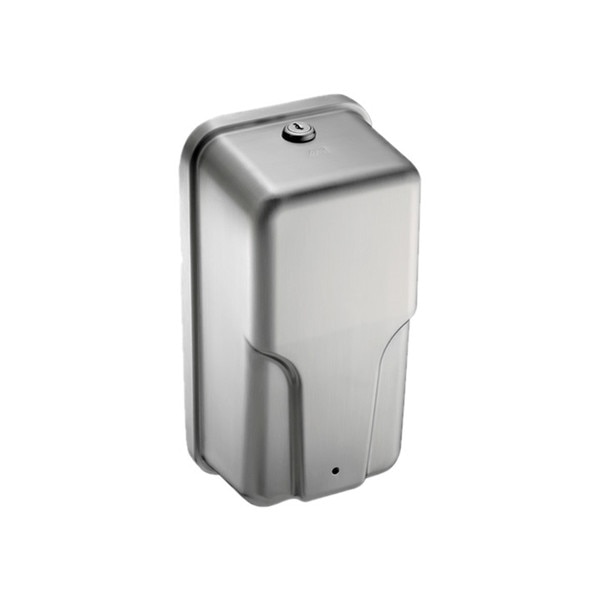

ASI 10-20364 Stainless Steel, Wall/Surface Mount Automatic Soap Dispenser, Vertical Format
Hands-free soap dispenser powered by 6 AA-size batteries (not included). Dispensing cycles adjustable with tamper-proof magnetic key. Seamless drawn type 304 stainless steel cover. Translucent removable internal tank for easy-to-view level. LED indicates adjustment and operation.
Capacity: 34 oz. (1 L).
Soap Requirements: Proper usage of this dispenser requires, that only soap within the following range for viscosity and pH may be used.
Viscosity Range (mPa·s or cP): 50 – 3500
pH Range: 5.0 ~ 9.0
| Mount: | Wall / Surface |
| Operation: | Automatic (Hands-Free) Sensor Activated |
| Cover Material: | Stainless Steel |
| Power: | Six (6) AA size (1.5V) Batteries (not included) |
| Soap Type: | Liquid soaps, lotions, liquid hand sanitizer with up to 75% alcohol content and having a pH in range 7 ± 1.5 and soaps and lotions only having viscosity in range 50–3.5k cP (mm²/s [mPa•s]) or gel sanitizers having viscosities in range 50 - 5.5k cP (mm²/s [mPa•s]) |
| Capacity: | 34 oz. |
| Dispense Amount: | 0.03 ± 0.002 oz (0.8 ± 0.05 ml) |
| Overall Dimensions: | 5-1/2" Wide x 10-7/8" Tall x 4" Deep |
| Net Weight: | 2.8 lbs. |
| Shipping Dimensions: | 12" Length x 6" Width x 5" Height |
| Shipping Weight: | 3 lbs. |
| Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Comments: | Door has lock to provide security and vandal resistance after each soap refill and battery change service interval. Opening cover activates pump shut-off to prevent spills while servicing soap or batteries. |
Architectural Specifications:
Automatic Soap and Gel Hand Sanitizer Dispenser shall hold 34 oz [1 L] of liquid soaps, lotions, liquid hand sanitizer with up to 75% alcohol content and having a pH in range 7 ± 1.5 and soaps and lotions only having viscosity in range 50–3.5k cP (mm²/s [mPa•s]) or gel sanitizers having viscosities in range 50 - 5.5k cP (mm²/s [mPa•s]) and will dispense in cycles of a single shot volume of 0.03 ± 0.002 oz (0.8 ± 0.05 ml). Operation is initiated by hands-free sensor controlled by microprocessor digital circuitry powered by six (6) AA size 1.5 V batteries (by others) in a concealed compartment and locked inside unit bottom. Unit shall be 22 gauge type 304 stainless steel alloy 18-8. All exposed surfaces shall be satin finish. Cover shall have lock keyed alike with other ASI washroom accessories. Unit shall have an LED to indicate function and operational condition on front face. Internal tank shall be translucent to show level of filled product supply remaining at any time when cover is opened and shall have an internal shut-off valve to facilitate filling and external storage of full tanks. Unit shall mount to wall on concealed base plate with screws secured under locked cover. Mounting Template (MT), Owner’s Manual and Installation Guide (OM & IG) shall be provided with unit in each carton.
