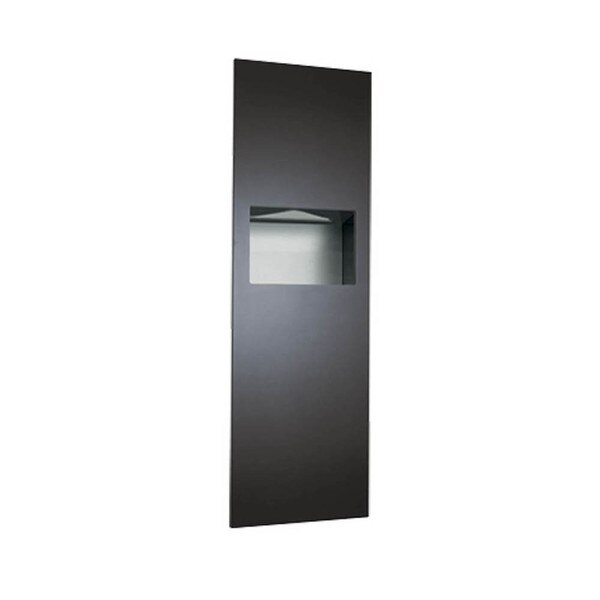

ASI Piatto™ 10-6462-41 Recessed Towel Dispenser & Waste Bin, Black
 | Completely FLUSH mount. No projection! |
This sophisticated combination paper towel and waste receptacle cabinet is designed to be completely recessed into the plane of the washroom wall, highlighting the seamless design that defines Piatto™.
The phenolic door is attached to the cabinet using field-adjustable, furniture quality hinges and is secured shut by an internal spring-loaded latch. All hardware is concealed giving the Piatto™ Collection its minimalist appeal.
- Dispenses 600 C-fold, 800 multi-fold, or 1,100 standard single-fold towels (with provided adapter)
- 9 gal. (34 L) stainless steel waste receptacle
- Towel dispensing slot has hemmed-in rolled edge for snag free dispensing and user safety.
- Paper An adjustable towel adapter ensures that towels feed properly until depleted
Certifications:

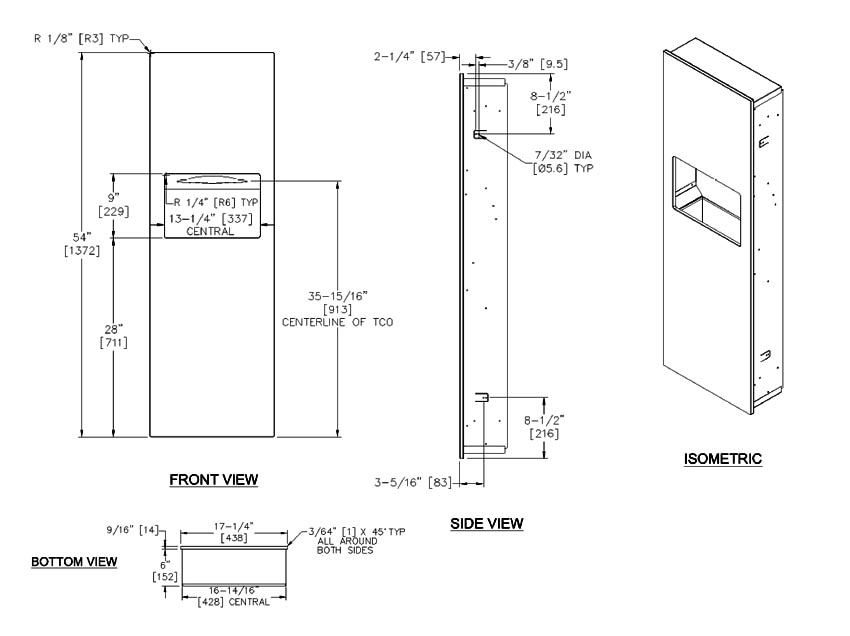

Measurement Diagram:
Alternatives:
Need it in White? See ASI Piatto® 6462-00 .
Want an automatic roll-type paper towel dispenser? See the ASI Piatto® 64696A-41 2-in-1 .
| Type: | C-Fold / Multi-Fold Paper Towel Dispenser with Integrated Waiste Container |
| Primary Material: | Phenolic Facia with Stainless Steel Frame |
| Color / Finish: | Black |
| Installation Type: | Wall / Recessed |
| Capacity: | Paper Towels: 600 C-Fold (800 Multi) Waste: 9.0 Gallons |
| Waste Bin Capacity: | FALSE |
| Power: | No power required |
| ADA Compliant: | Yes |
| Overall Dimensions: | 17-1/4" Wide 54" Tall 6-1/2" Deep |
| Rough-In: | 17-5/16" Wide x 54-1/16" Tall x 6-11/16" Deep |
| Shipping Dimensions: | 57" Length x 20-1/4" Width x 9-9/16" Height |
| Shipping Weight: | 77.8 lbs. |
| Manufacturer Model No.: | 10-6462-41 |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Warranty: | Warranted to be free from defects in material and workmanship for a period of one (1) year from date of invoice. |
| Additional Comments: | Cabinet does not lock. |
| Made In: | USA |
| Warranty: | 1 Yr. manfuacturer's limited warranty |
Architectural Specifications:
Piatto™ Collection Paper Towel Dispenser and Waste Receptacle shall hold and dispense 800 standard multi-fold or 600 standard C-fold paper towels or 1100 standard single-fold paper towels, and shall have a waste capacity of 9 gallons (34 L). Frame and cabinet shall be 20 gage type 304 alloy 18-8 stainless steel and shall have no exposed fastening devices. Towel dispensing slot shall have a fully hemmed -in rolled edge for snag-free dispensing and user safety. Flush face door shall be 1/2" [13] thick black edged Phenolic with matte black or white outer and inner surfaces as chosen by tail code on model number. Door shall be attached to the side of cabinet with four (4) zeroclearance concealed cabinet hinges and shall be held closed with a spring-pin L-latch. Structural assembly of all components shall be of welded construction. OM & IG shall be packed with unit. Installation set-back gage and depth stops shall be provided.
