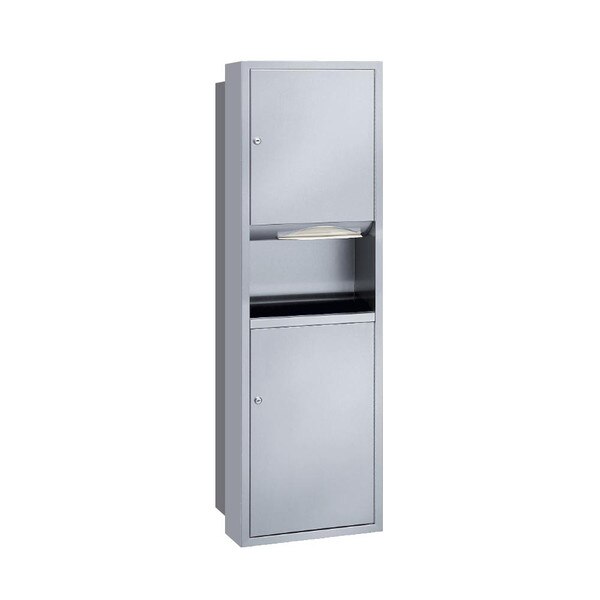

Bradley 238-100000 Semi-Recessed High Capacity Towel Dispenser with 8.2 Gallon Waste Receptacle
This high capacity stainless steel paper towel dispenser with integrated waste receptacle will hold up to 800 multi-fold or 600 c-fold paper towels. The cabinet is 22 gauge and the doors are 18 gauge stainless steel with a brushed (satin) finish. Doors for towel compartment and waste bin are secured with tumbler locks using Bradley's universal restroom fixture key. See the 5 pack: (P15-398).
Waste bin has 12 gallon capacity, is removable for emptying, and has a leak-proof molded plastic liner.
Rough-in is 15-3/4" Wide x 54-3/4" Tall x 3-1/2" Deep
Measurement Diagram:
| Type: | C-Fold / Multi-Fold Paper Towel Dispenser with Integrated Waiste Container |
| Primary Material: | Stainless Steel |
| Color / Finish: | Satin (Brushed) |
| Installation Type: | Wall / Semi-Recessed (3-1/2" into wall, Projects 4") |
| Capacity: | 600 C-Fold or 800 Multi-Fold Paper Towels |
| Waste Bin Capacity: | 12 Gal. |
| Power: | None required |
| ADA Compliant: | Yes (Projects 4", and is cane detectable) |
| Overall Dimensions: | 17-1/4" Wide x 56" Tall x 7-1/2" Deep (Projects 4") |
| Rough-In: | 15-3/4" Wide x 54-3/4" Tall x 3-1/2" Deep |
| Shipping Dimensions: | 59-1/4" Length x 19-1/4" Width x 9-1/4" Height |
| Shipping Weight: | 37.5 lbs. |
| Manufacturer Model No.: | 238-100000 |
| UPC / GTIN: | 084241002375 |
| Country of Manufacture: | USA |
| Warranty: | 1 Yr. Manufacturers |
| Additional Comments: | Tumbler locks use Bradley key: P10-526. Purchase in 5-pack: < a href="/bradley-part-P15-398">P15-398. |
Warnings:
 | This product can expose you to chemicals including Lead, which is [are] known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
Architectural Specifications:
Recessed combination towel dispenser and waste receptacle shall be fabricated of 22 gauge stainless steel with exposed surfaces in satin finish. Cabinet doors with full length piano hinge and secured by tumbler locks. Towel dispenser capacity 1100 single-fold, 800 multi-fold or 500 C-fold towels. Removable 8.2 gal. leakproof molded plastic insert for waste receptacle. Overall dimensions: 17-1/8"W x 56"H x 7-1/2"D.
