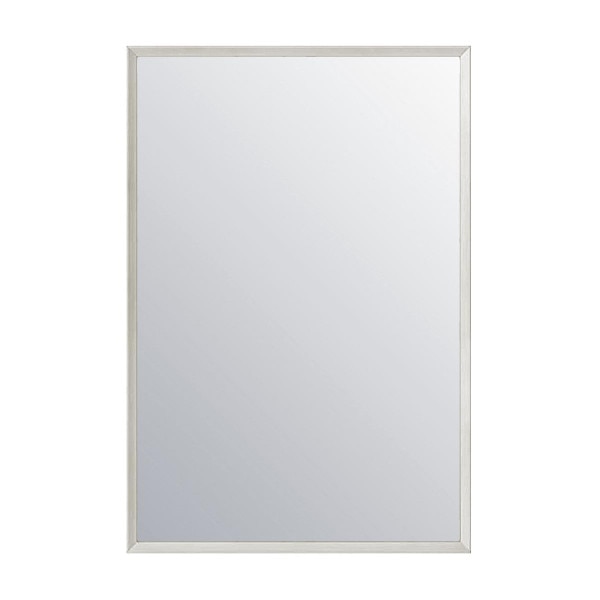

Brey-Krause T-1024-36-SS Stainless Steel Frame Mirror, 24 W x 36 T
24 x 36 Heavy duty commercial grade lavatory mirror. One piece 18 ga. 5/8" x 5/8" type 304 Satin Stainless Steel Frame with tightly mitered corners (each corner secured by 4 spot welds). Back of mirror is sealed and cushioned by continuously applied industrial adhesive and galvanized sealed backing. Mirror edges are protected by cushioned adhesive strips to prevent damage
Mirror is secured to wall by vandal resistant mounting system.
1/4" Float glass mirror is silvered and electrostatically coppered by galvanic process.
Upper & lower wall brackets are 22 gauge galvanized steel with 7/32" mounting holes.
Unique, quick assembly, quick mount, frame and collar arrangement
Each mirror is packed with 1-1/2" foam around entire perimeter to avoid breakage during shipment
Commercial restroom mirrors can ship via UPS and are guaranteed against breakage reported upon receipt

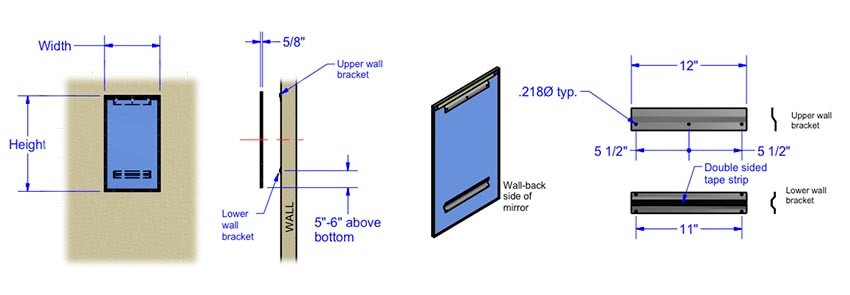

Measurement Diagram:
| Brand: | Brey-Krause |
| Manufacturer Model No.: | T-1024-36-SS |
| Mount: | Flat |
| Frame Material: | Satin Stainless Steel |
| Frame Type: | Angle Frame (Mitred Corners) |
| Glazing: | 1/4" Float Glass |
| Overall Dimensions: | 24" Wide x 36" Tall x 5/8" Deep |
| Shipping Dimensions: | 29" Length x 41" Width x 4" Height |
| Shipping Weight: | 45 lbs. |
| UPC / GTIN: | Not Published |
| Country of Manufacture: | Not Published |
| Warranty: | 10 Yr. Against Silver Spoilage |
Architectural Specifications:
The Brey-Krause universal frame mirrors set a new standard in quality and installation ease. The innovative design and fabrication method results in a mirror with superior breakage and moisture resistance. Our vandal-resistant mounting system makes installation simple and fast! Flat, universal frame commercial restroom mirrors are easily converted to ADA tilt-frame mirrors by sliding them into the stainless steel tilt frame. This engineering innovation allows distributors to carry less stock and better respond to changes in demand. The adjustable frame brackets readily allow any flat public restroom mirror to be converted to an adjustable tilt frame for ADA compliance
