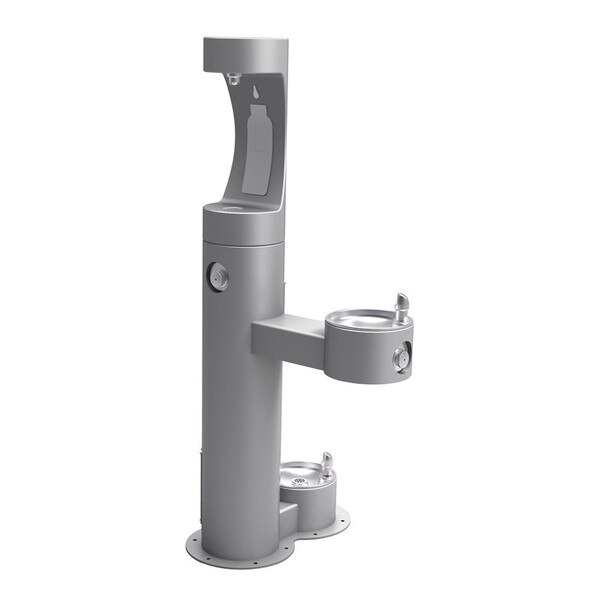

Elkay LK4420BF1UDBGRY Outdoor EZH2O Bottle Filling Station, Bi-Level Fountain & Pet Station, Gray
 | IMPORTANT: This product is non-refrigerated. It does NOT cool the water it dispenses. |
Outdoor Bottle Filling Stations ideal for educational campuses and recreational areas. Powder-coated exterior over a corrosion-resistant stainless steel type-316 base material to provide protection from the elements.
- Corrosion-resistant base material provides the ultimate protection from the elements.
- Heavy-gauge construction with tamper-resistant screws that resist stains and corrosion.
- Vandal-resistant bubblers feature chrome-plated integral hood guard to prevent contamination from other users, airborne deposits and tampering.
- Laminar flow provides clean fill with minimal splash.
- Pet fountain features slow drainage for easy drinking.
- Freeze-resistant options available.
Certifications:

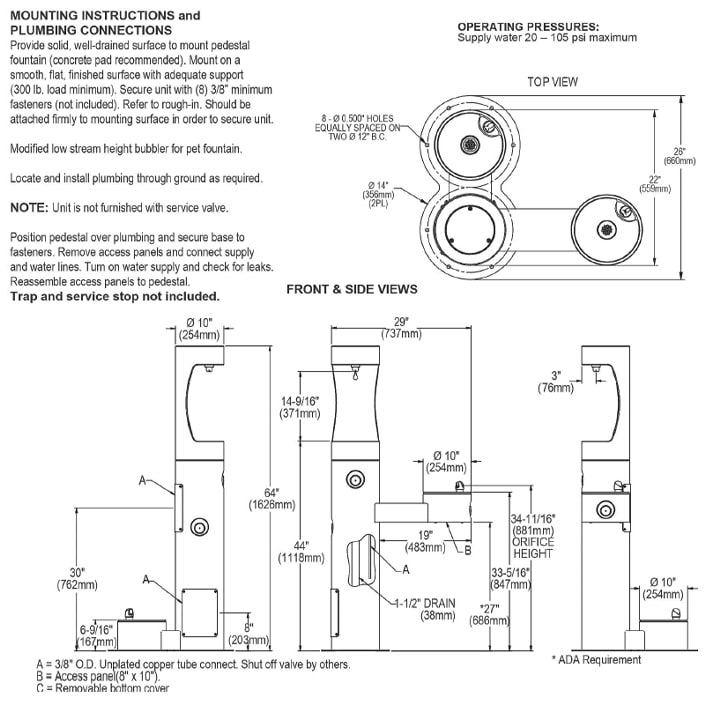

Measurement Diagram:
| Installation Location: | Outdoor |
| Number of Stations: | One (1) drinking fountain One (1) EZH2O bottle filling station One (1) Pet Bowl |
| Mount: | Floor or Free Standing |
| Operation: | Push Button |
| Basin(s): | Stainless Steel, Brushed Finish |
| Cabinet(s): | Stainless Steel, Gray Finish |
| Bubbler(s): | Chrome Plated Vandal Resistant |
| Cooled: | No |
| Filtered: | No |
| Power: | No power required |
| Status Display: | None |
| Overall Dimensions: | 64" Tall x 31" Wide x 26" Deep |
| Rough-in: | Not applicable |
| Shipping Dimensions: | 48" Length x 40" Wdith x 38" Height |
| Shipping Weight: | 184 lbs. |
| UPC / GTIN: | 94902062884 |
| Manufacturer Model No.: | LK4420BF1UDBGRY |
| Country of Manufacture: | USA |
| Warranty: | 5 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay Outdoor ezH2O® Upper Bottle Filling Station Bi-Level, Pedestal with Pet Station Non-Filtered Non-Refrigerated. Features shall include 316 Stainless, Heavy Duty Vandal Resistant, Laminar Flow, Pet Fountain. Furnished with Vandal Resistant bubbler. Mechanical Front Bubbler Button activation. Product shall be Floor Mount/Freestanding, for Outdoor applications, serving 2 station(s). Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
