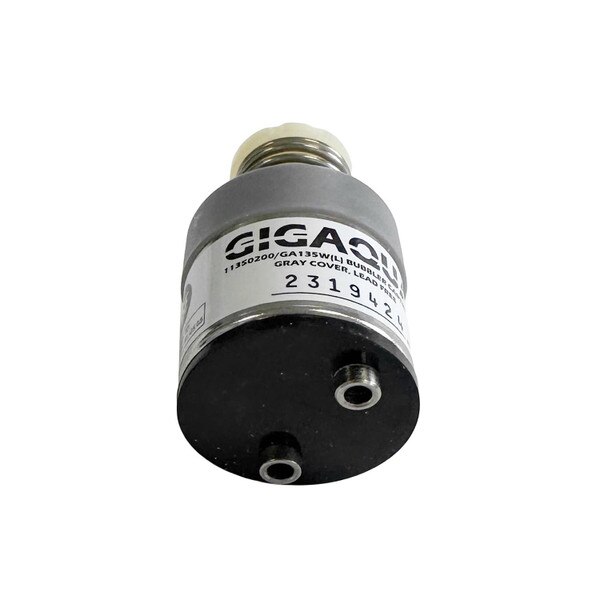

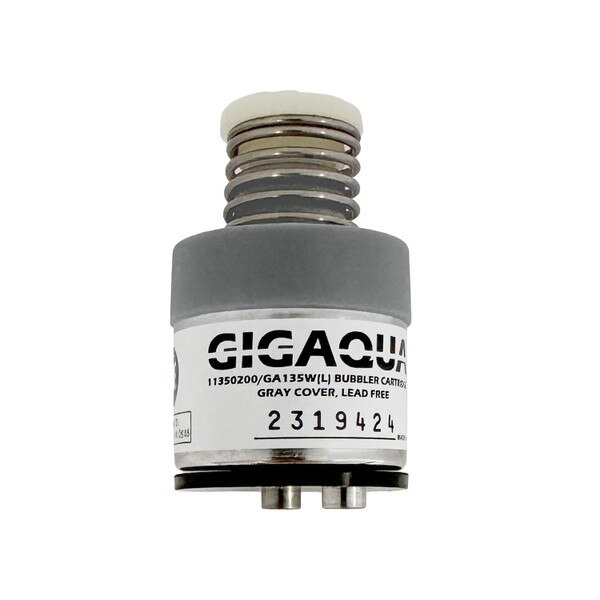

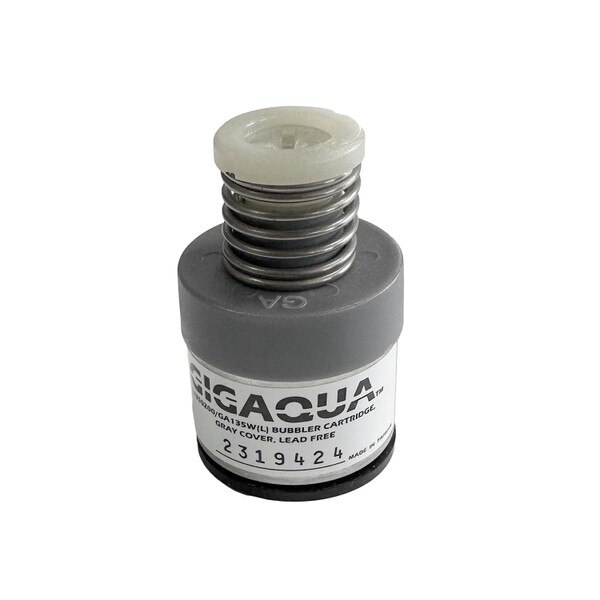

GigAqua 11350200 Regulator Cartridge (aka: Elkay 60290C, GA135W(L))
Replacement spring cartridge for regulators on push button fountains. Gray (Hardest Strength Spring).
Sometimes referred to as a "bubbler cartridge". For use in push button drinking fountains and water coolers that use Elkay Flow Regulator: 60290C (Can also replace 61313C or 61314C but will be harder to press.)
(aka: Pro-Flo 7701PFLFA, GigAqua GA135W(L)) and compatible with some Oasis drinking fountains.
Note: When choosing a replacement regulator, the color (of the cap or the spring) will indicate the amount of force required to activate it. In order from easiest to press to hardest to press, the options are: red, green, blue, and finally, gray.This shouldn't be confused with the rate of flow (which is ultimately expressed at the bubbler as stream height. ALL cartridges come with an adjustment slot in the top which can be screwed in or out to adjust the flow of water when the cartridge is active (being pressed).
| Brand: | Elkay |
| Manufacturer Model No.: | 60290C | 7701PFLFA |
| Type: | Regulator Cartridge |
| Compatibility: | For use with Elkay & Halsey Taylor (spring cartridge) regulators. |
| Included: | One (1) regulator spring cartridge |
| Overall Dimensions: | 1-1/32" Diameter x 1-3/4" Tall |
| Shipping Dimensions: | 6" Length x 4" Width x 4" Height |
| Shipping Weight: | 1 lbs. |
| UPC / GTIN: | 094902234564 |
| Country of Manufacture: | USA |
| Additional Comments: | This part often used in the export (220V) fountains, but will work in any standard regulator housing. |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
