Excel XLERATOR Part Stock # 1411W Sub Assembly on Wall Plate, 208-277V
The XLP-1411W Subassembly replacement kit replaces Subassembly XLP-1411. This unit is identical to XLP-1411, the W indicating Excel's updated 7 year warranty

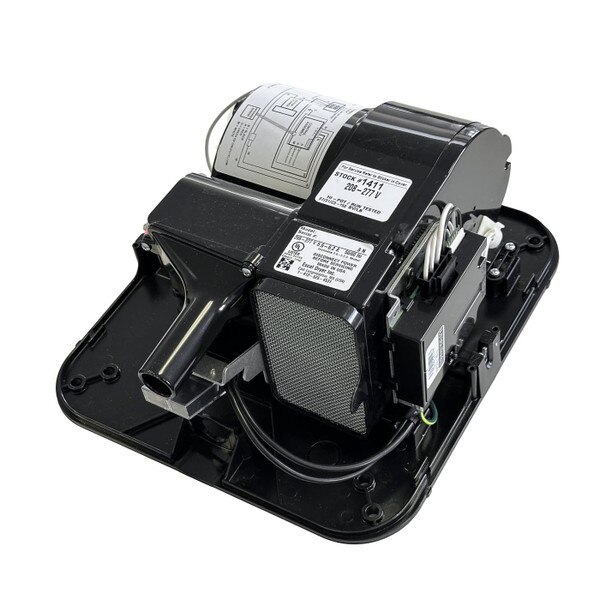

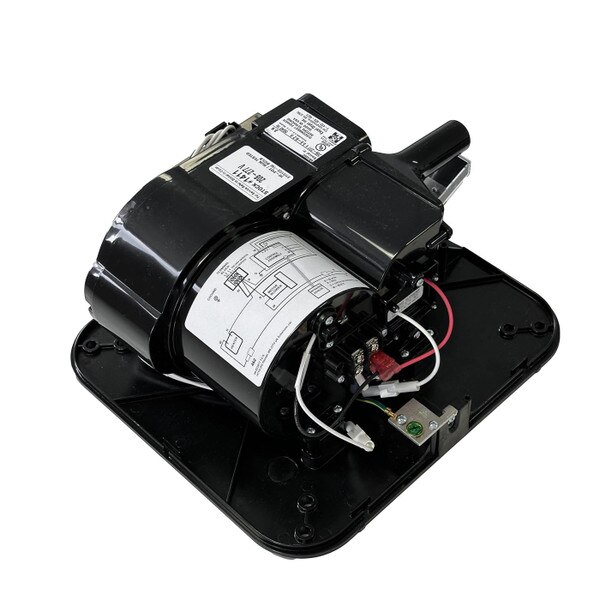

Complete chassis and back plate for XLERATOR, 208-277V. Includes everything except for the cover. Compatible with any XLERATOR cover. Replaces Elkay Parts 1411, 40201, 40202, and 40203 (which are discontinued).
Complete chassis and back plate for XLERATOR, 208-277V. Includes everything except for the cover. Compatible with any XLERATOR cover. Replaces Elkay Parts 1411, 40201, 40202, and 40203 (which are discontinued).
- All new motor and components
- Externally visible LED service light
- Adjustable speed, sound, and heat controls
- 7-year manufacturer's warranty
- 208-277V Subassemly .8 Nozzle
| Cover: | None |
| Mount: | Surface Mount, Optional Recessing Kit available (XLP-40502, purchased separately) |
| Reported Dry Time: | 8 Seconds |
| Nozzle: | Concentrated Single Port, 0.8" Diameter, for fastest drying |
| Activation: | Automatic (infra-red sensor) Touch-Free |
| Power: | 208-277V 50/60Hz, (1240-1450 Watts Adjustable) |
| Motor: | High pressure universal brush type. Replaceable motor brushes. |
| Fan: | Thermally protected, series commutated, through-flow discharge vacuum motor/blower (5/8 hp / 20,000 rpm) |
| Air Speed: | 19,000 LFM |
| Heating Element: | Heating element (950 W) is constructed of Nichrome wire and mounted inside the blower housing behind air baffle, thereby being vandal resistant. |
| Fan: | Thermally protected, series commutated, through-flow discharge vacuum motor/blower (5/8 hp / 20,000 rpm) |
| Air Speed: | 19,000 LFM |
| Heating Element: | Heating element (950 W) is constructed of Nichrome wire and mounted inside the blower housing behind air baffle, thereby being vandal resistant. |
| Filter: | Coarse metal mesh filter (washable) |
| Shipping Weight: | 9 lbs. |
| Warranty: | 3 Year Manufacturer's Limited |
| Country of Manufacture: | US |
| Additional Comments: | Adjustable motor speed, heat, and sensor range |
