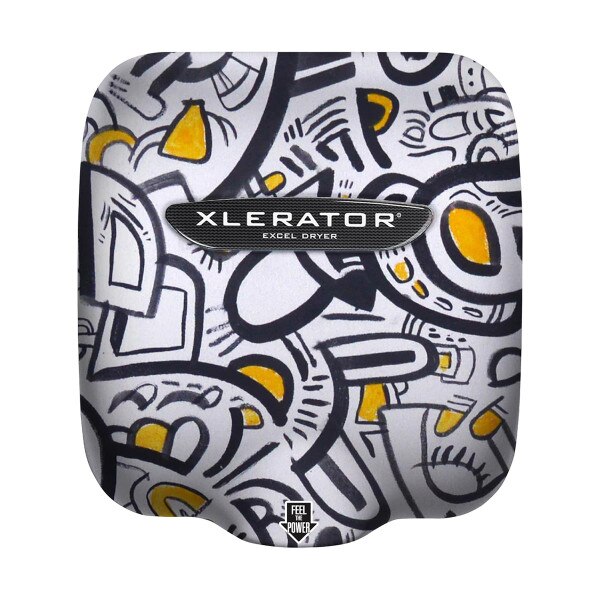

Excel XLERATOR XL-SI Hand Dryer, Dawn, 110-120V
 | SPECIAL ARTWORK COVER - Based on artwork from "Dawn" by Stephanie Wu. |
The XLERATOR® by Excel Dryer is one of those terrific products that really lives up to it's reputation. Performance wise, it is second to none. In fact, in a recent PCR study, by UL Environment (a division of UL, Underwriter's Laboratories), the XLERATOR® recorded dry times as low as 8 seconds1
In terms of energy usage, it was shown to use 3.7 Wh1 accumulated energy use which turns out to be about 50¢ per 1000 uses!
Made in the USA, with quality, commercial grade components, the XLERATOR® will pay for itself many times over in saved paper towel and janitorial costs over it's operational life. And in the rare case where a problem does occur, an externally visible service indicator shows information on where the problem lies for easy diagnosis and repair.
1 Dry time and energy use testing performed by SGS International on standard XLERATOR/XLERATOReco® Hand Dryers with 0.8" nozzle to 0.25g or less of residual moisture, pursuant to the UL Environment Global Product Category Rules (PCR) for Hand Dryers.
 Stephanie Wu Artist Information |  |
Stephanie Wu
Dawn
2016
48” x 48” Acrylic on Canvas
Artist Information
Stephanie Wu draws her inspiration from the people around her. She grew her confidence at AFH and went on to attend art school. After graduating RISD in 2021, she began working as a Junior Designer at The New Yorker. Her work remains among the most well collected from the AFH archives.
- 95% Cost Savings vs Paper Towels
- 8 Second Dry Time
- Automatic (Hands-free) operation
- 110-120V Power Input
- Made in USA Certified®
- 7-Year Limited Warranty
Looking for parts? See our XLERATOR Parts Area
Distributors and contractors buying in quantity: For a special quote based on your quantity order, please call 704-937-2673 and press 1 for sales or email us at sales@berls.com.
Certifications:
Measurement Diagram:
Alternatives:
Need a narrow profile dryer (less than 4" deep)? Try the Dyson Airblade V (HU02-W-LV) Hand Dryer
Need a completely recessed hand dryer? Try the ASI (10-0135-1) TURBO-Tuff .
| Activation: | Automatic (infra-red sensor) Touch-Free |
| Mount: | Surface Mount, Optional Recessing Kit available (XLP-40502, purchased separately) |
| Cover: | White Epoxy Finish on Die Cast Zinc |
| Cycle Time: | Not applicable Dryer stops when hands are removed. |
| Nozzle: | Concentrated Single Port, 0.8" Diameter, for fastest drying |
| Power: | 1240-1450 Watts (Adjustable), 110-120V (11.3 to 12.2A), 50/60Hz |
| Motor: | Thermally protected, series commutated, high pressure 5/8 hp universal brush type. |
| Fan: | Circular impeller inside through-flow discharge vacuum type motor/blower casing (20,000 rpm) |
| Airspeed: | 19,000 LFM |
| Heating Element: | Heating element (950 W) is constructed of Nichrome wire and mounted inside the blower housing behind air baffle, thereby being vandal resistant. |
| Filter: | Coarse metal mesh filter (washable) |
| IP Rating: | IPX3 (Water Ingress Protection Level 3) |
| Product Dimensions: | 11-7/8" Wide x 12-11/16" Tall x 6-11/16" Deep |
| Shipping Dimensions: | 15" Length x 14" Width x 10" Height |
| Shipping Weight: | 17 lbs. |
| UPC / GTIN: | Not published |
| Manufacturer Model No.: | XL-SI-AFH-Wu-Dawn |
| Country of Manufacture: | USA |
| Warranty: | 7 Year Excel Dryer Limited Warranty |
| Additional Comments: | Special Artwork by Stephanie Wu, "Dawn" |
