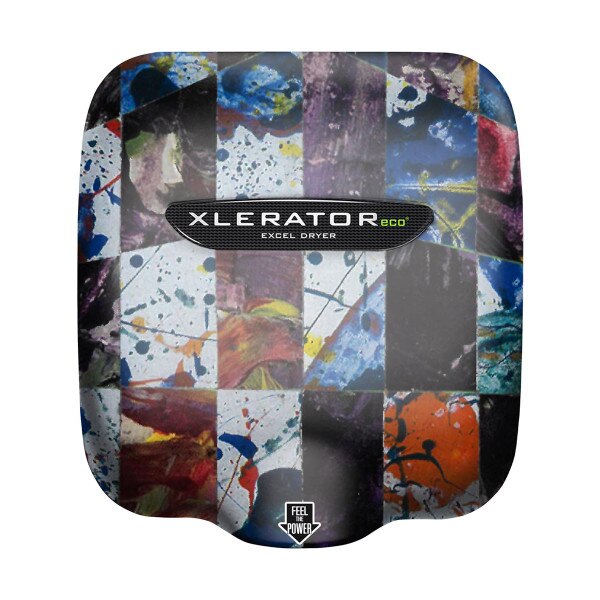

Excel XLERATOReco XL-SI-ECO Hand Dryer, No Heat, Illusion, 110-120V
 | SPECIAL ARTWORK COVER - Based on artwork from "Illusion" by JingYi Li. |
The XLERATOR® by Excel Dryer is one of those terrific products that really lives up to it's reputation. Performance wise, it is second to none. In fact, in a recent PCR study, by UL Environment (a division of UL, Underwriter's Laboratories), the XLERATOR® recorded dry times as low as 8 seconds1
In terms of energy usage, it was shown to use 3.7 Wh1 accumulated energy use which turns out to be about 50¢ per 1000 uses!
Made in the USA, with quality, commercial grade components, the XLERATOR® will pay for itself many times over in saved paper towel and janitorial costs over it's operational life. And in the rare case where a problem does occur, an externally visible service indicator shows information on where the problem lies for easy diagnosis and repair.
1 Dry time and energy use testing performed by SGS International on standard XLERATOR/XLERATOReco® Hand Dryers with 0.8" nozzle to 0.25g or less of residual moisture, pursuant to the UL Environment Global Product Category Rules (PCR) for Hand Dryers.
 JingYi Li Artist Information |  |
JingYi Li
Illusion
2020
6” x 6” Collage on Paper
Artist Information
JingYi is a recent graduate of North Quincy High School and is currently enrolled in UMASS Boston. She worked at AFH in the 3D Design studio for four years. In that time, she became technically skilled in the craft of paper art and produced collages that were purchased by a wide range of collectors.
- 8 Second Dry Time
- 80% Less Energy Than Conventional Dryers, ONLY 500 Watts!
- 95% Cost Savings vs Paper Towels
- Made in USA Certified®
- 7-Year Limited Warranty
- A Hygienic Hand Drying Solution
Looking for parts? See our XLERATOR Parts Area
Distributors and contractors buying in quantity: For a special quote based on your quantity order, please call 704-937-2673 and press 1 for sales or email us at sales@berls.com.
Certifications:
Measurement Diagram:
Alternatives:
Need a narrow profile dryer (less than 4" deep)? Try the Dyson Airblade V (HU02-W-LV) Hand Dryer
Need a completely recessed hand dryer? Try the ASI (10-0135-1) TURBO-Tuff .
| Activation: | Automatic (infra-red sensor) Touch-Free |
| Mount: | Surface Mount, Optional Recessing Kit available (XLP-40502, purchased separately) |
| Cover: | White Epoxy Finish on Die Cast Zinc |
| Cycle Time: | Not applicable Dryer stops when hands are removed. |
| Nozzle: | Concentrated Single Port, 0.8" Diameter, for fastest drying |
| Power: | 425-500 Watts (Adjustable), 110-120V (3.7 to 4.3A), 50/60Hz |
| Motor: | Thermally protected, series commutated, high pressure 5/8 hp universal brush type. |
| Fan: | Circular impeller inside through-flow discharge vacuum type motor/blower casing (20,000 rpm) |
| Airspeed: | 19,000 LFM |
| Heating Element: | None |
| Filter: | Coarse metal mesh filter (washable) |
| IP Rating: | IPX3 (Water Ingress Protection Level 3) |
| Product Dimensions: | 11-7/8" Wide x 12-11/16" Tall x 6-11/16" Deep |
| Shipping Dimensions: | 15" Length x 14" Width x 10" Height |
| Shipping Weight: | 17 lbs. |
| UPC / GTIN: | Not published |
| Manufacturer Model No.: | XL-SI-ECO-AFH-Li-Illusion |
| Country of Manufacture: | USA |
| Warranty: | 7 Year Excel Dryer Limited Warranty |
| Additional Comments: | Special Artwork by JingYi Li, "Illusion" |
