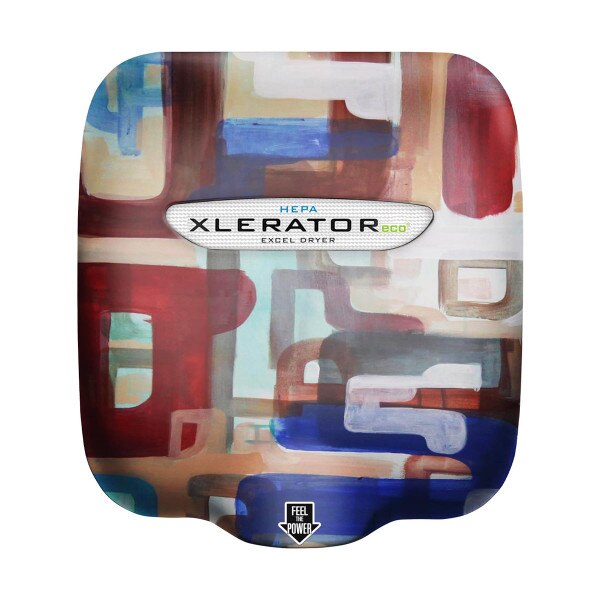

Excel XLERATOReco XL-SIH-ECO Hand Dryer with HEPA, No Heat, Complex Thoughts, 110-120V
 | SPECIAL ARTWORK COVER - Based on artwork from "Complex Thoughts of the Mind" by Takii Samuels. |
The XLERATOR® by Excel Dryer is one of those terrific products that really lives up to it's reputation. Performance wise, it is second to none. In fact, in a recent PCR study, by UL Environment (a division of UL, Underwriter's Laboratories), the XLERATOR® recorded dry times as low as 8 seconds1
In terms of energy usage, it was shown to use 3.7 Wh1 accumulated energy use which turns out to be about 50¢ per 1000 uses!
Made in the USA, with quality, commercial grade components, the XLERATOR® will pay for itself many times over in saved paper towel and janitorial costs over it's operational life. And in the rare case where a problem does occur, an externally visible service indicator shows information on where the problem lies for easy diagnosis and repair.
1 Dry time and energy use testing performed by SGS International on standard XLERATOR/XLERATOReco® Hand Dryers with 0.8" nozzle to 0.25g or less of residual moisture, pursuant to the UL Environment Global Product Category Rules (PCR) for Hand Dryers.
 Takii Samuels Artist Information |  |
Takii Samuels
Complex Thoughts of the Mind
2012
60” x 60” Acrylic on Canvas
Artist Information
Takii Samuels is a color blind artist that uses this trait to his advantage. His style speaks to the connections and relationships in his life. He chooses colors he can see and it creates a thematic through line in his body of work. Takii worked at AFH for four years and in that time, his work found homes in multiple art collections.
- Highest quality HEPA filter removes 99.999% of viruses and germs from airstream. HEPA cartridge is replaceable.
- 80% Less Energy Than Conventional Dryers, ONLY 500 Watts!
- 7 Year industry leading manufacturer's warranty.
- 95% Cost Savings vs Paper Towels.
- Made in USA Certified®
- Helps Qualify for the Most LEED® v4 Credits
Looking for parts? See our XLERATOR Parts Area
Distributors and contractors buying in quantity: For a special quote based on your quantity order, please call 704-937-2673 and press 1 for sales or email us at sales@berls.com.
Certifications:
Measurement Diagram:
Alternatives:
Need a narrow profile dryer (less than 4" deep)? Try the Dyson Airblade V (HU02-W-LV) Hand Dryer
Need a completely recessed hand dryer? Try the ASI (10-0135-1) TURBO-Tuff .
| Activation: | Automatic (infra-red sensor) Touch-Free |
| Mount: | Surface Mount, Optional Recessing Kit available (XLP-40502, purchased separately) |
| Cover: | White Epoxy Finish on Die Cast Zinc |
| Cycle Time: | Not applicable Dryer stops when hands are removed. |
| Nozzle: | Concentrated Single Port, 0.8" Diameter, for fastest drying |
| Power: | 425-500 Watts (Adjustable), 110-120V (3.7 to 4.3A), 50/60Hz |
| Motor: | Thermally protected, series commutated, high pressure 5/8 hp universal brush type. |
| Fan: | Circular impeller inside through-flow discharge vacuum type motor/blower casing (20,000 rpm) |
| Airspeed: | 19,000 LFM |
| Heating Element: | None |
| Filter: | HEPA Filter with metal mesh pre-screen Replaceable HEPA filter cartridge 40520 replaceable on 1 year schedule. Metal mesh pre-screen to be washed quarterly. |
| IP Rating: | IPX3 (Water Ingress Protection Level 3) |
| Product Dimensions: | 11-7/8" Wide x 12-11/16" Tall x 6-11/16" Deep |
| Shipping Dimensions: | 15" Length x 14" Width x 10" Height |
| Shipping Weight: | 17 lbs. |
| UPC / GTIN: | Not published |
| Manufacturer Model No.: | XL-SIH-ECO-AFH-Samuels-Thoughts |
| Country of Manufacture: | USA |
| Warranty: | 7 Year Excel Dryer Limited Warranty |
| Additional Comments: | Special Artwork by Takii Samuels, "Complex Thoughts of the Mind" |
