  • Excel XLERATOR XL-W Hand Dryer, White, 110-120V

Excel XLERATOR XL-W Hand Dryer, White, 110-120V

(0) No Reviews yet
$585.00
SKU: XL-W
Distributors and contractors buying in quantity: For a special quote based on your quantity order, please call 704-937-2673 and press 1 for sales or email us at sales@berls.com.

The XLERATOR® by Excel Dryer is one of those terrific products that really lives up to it's reputation. Performance wise, it is second to none. In fact, in a recent PCR study, by UL Environment (a division of UL, Underwriter's Laboratories), the XLERATOR® recorded dry times as low as 8 seconds1

In terms of energy usage, it was shown to use 3.7 Wh1 accumulated energy use which turns out to be about 50¢ per 1000 uses!

Made in the USA, with quality, commercial grade components, the XLERATOR® will pay for itself many times over in saved paper towel and janitorial costs over it's operational life. And in the rare case where a problem does occur, an externally visible service indicator shows information on where the problem lies for easy diagnosis and repair.

1 Dry time and energy use testing performed by SGS International on standard XLERATOR/XLERATOReco® Hand Dryers with 0.8" nozzle to 0.25g or less of residual moisture, pursuant to the UL Environment Global Product Category Rules (PCR) for Hand Dryers.

  • 8 Second Dry Time
  • 80% Less Energy Than Conventional Dryers
  • 95% Cost Savings vs Paper Towels
  • Made in USA Certified®
  • 7-Year Limited Warranty
  • A Hygienic Hand Drying Solution


What are Dryers for Humanity? See the special AFH XLERATOR collection for a really amazing hand drying experience.


Looking for parts? See our XLERATOR Parts Area



Certifications:

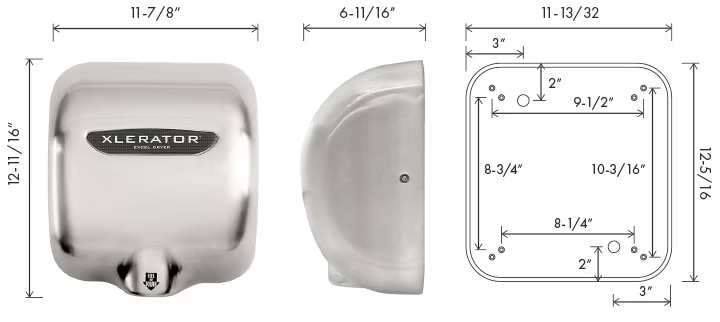

Measurement Diagram:



Alternatives:

Need a narrow profile dryer (less than 4" deep)? Try the Dyson Airblade V (HU02-W-LV) Hand Dryer

Need a completely recessed hand dryer? Try the ASI (10-0135-1) TURBO-Tuff .





Activation: Automatic (infra-red sensor) Touch-Free
Mount: Surface Mount, Optional Recessing Kit available
(XLP-40502, purchased separately)
Cover: White Epoxy Finish on Die Cast Zinc
Cycle Time: Not applicable Dryer stops when hands are removed.
Nozzle: Concentrated Single Port, 0.8" Diameter, for fastest drying
Power: 1240-1450 Watts (Adjustable), 110-120V (11.3 to 12.2A), 50/60Hz
Motor: Thermally protected, series commutated, high pressure 5/8 hp universal brush type.
Fan: Circular impeller inside through-flow discharge vacuum type motor/blower casing (20,000 rpm)
Airspeed: 19,000 LFM
Heating Element: Heating element (950 W) is constructed of Nichrome wire
and mounted inside the blower housing behind air baffle,
thereby being vandal resistant.
Filter: Coarse metal mesh filter (washable)
IP Rating: IPX3 (Water Ingress Protection Level 3)
Product Dimensions: 11-7/8" Wide x 12-11/16" Tall x 6-11/16" Deep
Shipping Dimensions: 15" Length x 14" Width x 10" Height
Shipping Weight: 17 lbs.
UPC / GTIN: 700251124431
Manufacturer Model No.: XL-W
Country of Manufacture: USA
Warranty: 7 Year Excel Dryer Limited Warranty


XLERATOR Hand Dryer by Excel Dryer





Excel Dryer Decebel Test for XLERATOR




TROUBLE SHOOTING & REPAIR GUIDES


How To Troubleshoot A Problem With A Hand Dryer By Excel Dryer





How To Replace An XLERATOR Heating Element By Excel Dryer





How To Replace Hand Dryer Sensor & Adjust Its Range By Excel Dryer





How To Replace the Blower Motor Assembly in an XLERATOR hand dryer by Excel Dryer
