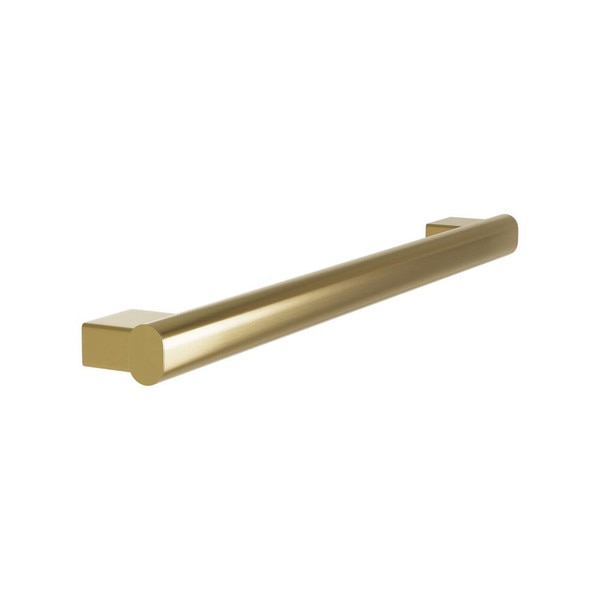

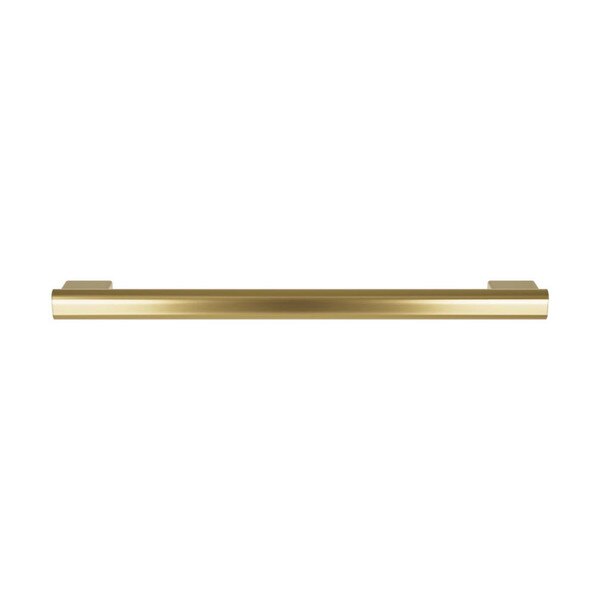

Bradley Elvari 8B1-0012400-BR Oval Grab Bar, 24" L x 2-17/32" D, Stainless Steel, Brushed Brass Electrocoat Finish
 | New Electrocoat finish - Beautiful translucent finish protects against fingerprints & color fading. |
Bradley Elvari series Grab Bar | Oval Rod | 24" Long | Stainless Steel with Brushed Brass Electrocoat Finish
Raise the bar on your restroom décor with these beautifully crafted, sophisticated design ADA grab bars (that also make terrific towel bars). The oval rod with a rectangular stand-off echos the circular pill design of the other Elvari fixtures. And flangeless, concealed mount points with no visible welds or mounting hardware support the clean minimalist appearance.
All Elvari products feature a new Electrocoat process that imparts a sophisticated translucent color-fast finish and resistance to fingerprints and smudging.
IMPORTANT: As this product is made to order the manufacturer does not allow returns or cancellations.
| Type: | Oval Grab Bar |
| Primary Material: | Stainless Steel |
| Mount Type: | Concealed (Other) |
| Outside Diameter: | Oval (1-9/16" Tall x 1-3/64" Wide) |
| Rated Width: | 24" |
| Rated Length: | Not applicable |
| Grip Type: | Smooth |
| Finish / Color: | Brushed Brass Electrocoat |
| Load Capacity: | ADA (250+ lbs.) |
| Bariatric: | No |
| Antimicrobial: | No |
| Overall Dimensions: | 18" Wide x 1-916" Tall x 2-17/32" Deep |
| Shipping Dimensions: | 28" Length x 6" Width x 4" Height |
| Shipping Weight: | 2.395 lbs. |
| Manufacture Model No.: | 8B1-0012400-BR |
| Country of Manufacture: | Taiwan |
| Warranty: | 1 Yr. Manufacturer's Limited |
| Additional Comments: | Fingerprint & smudge resistant colorfast coating. |
Warnings:
 | This product can expose you to chemicals including Lead, which is [are] known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
Architectural Specifications:
TUBING: Oval, 1-9/16" H x 1-3/64" W. 18‑gauge, 300 stainless steel with a brushed #3 satin finish or optional electrocoat finishes. All exposed welds ground and polished to blend. Each grab bar features welded studs and rectangular standoffs.
STANDOFF: The grab bar standoffs are made from a long‑lasting, durable, zinc alloy in a brushed #3 satin finish. Standoff provides 1-1/2" standard safety clearance between wall and bar. Zamak 3 (ASTM AG40A).
STRENGTH: When properly mounted, all Bradley heavy‑duty grab bar systems meet or exceed the requirements of ANSI Standard A117.1, the ADA and ABA Accessibility Guidelines for Buildings and Facilities (ADAAG), and the Uniform Federal Accessibility Standard (UFAS). 8B1 series grab bars are rated to support up to 250 pounds. Wall must be reinforced in the area of the grab bar in order to support the load it is intended to support.
Guide Specification: Oval grab bar shall be fabricated of 18‑gauge, 300 series stainless steel in a brushed #3 satin finish with welded end caps. Optional hooks shall be fabricated of 14‑gauge, 300 series stainless steel in a brushed #3 satin finish.
